Transmission Control Position Indicator Bulb Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove floor console. Refer to Front Floor Console Replacement . |
|

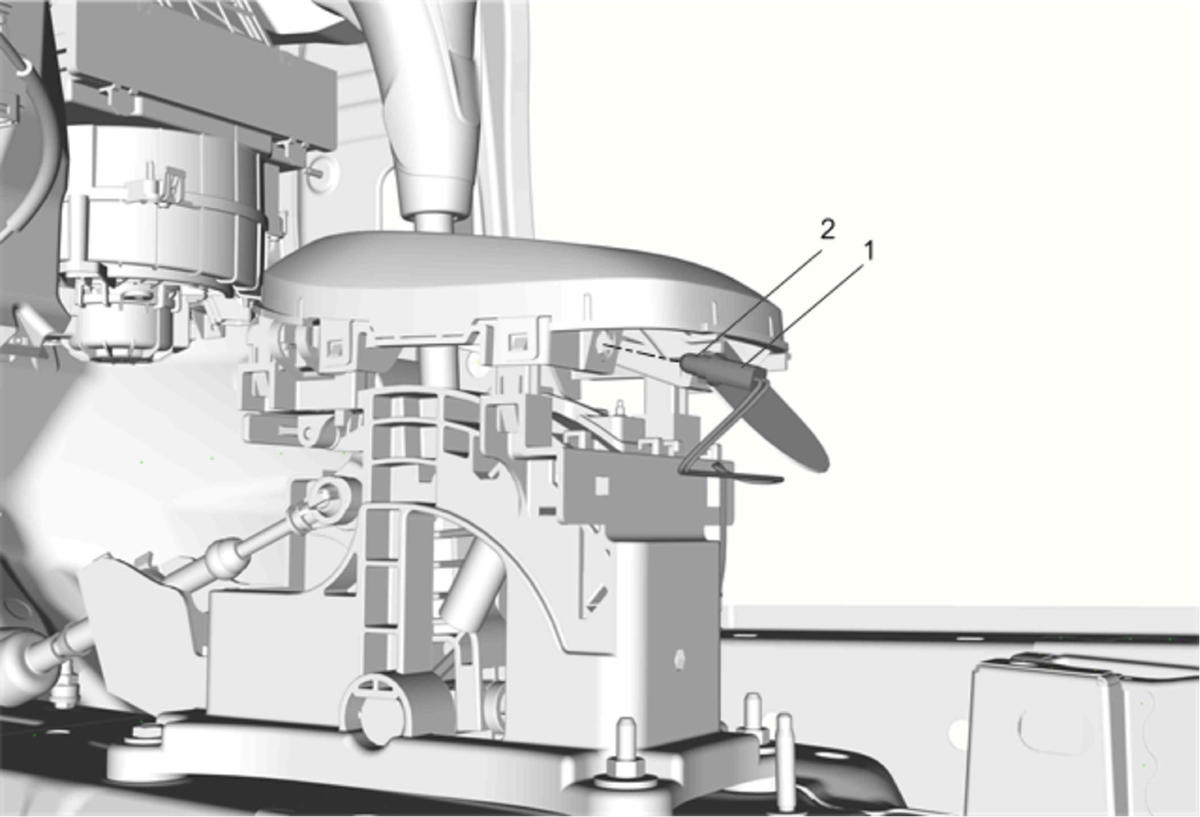

| 1 | Transmission Control Position Indicator Socket
WARNING:
Refer to Halogen Bulb Warning .
NOTE:
Rotate counterclockwise and remove the socket from the transmission control assembly. |
| 2 | Transmission Control Position Indicator Bulb Procedure Pull the bulb straight from the lamp harness socket. |
