Cruise Control Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

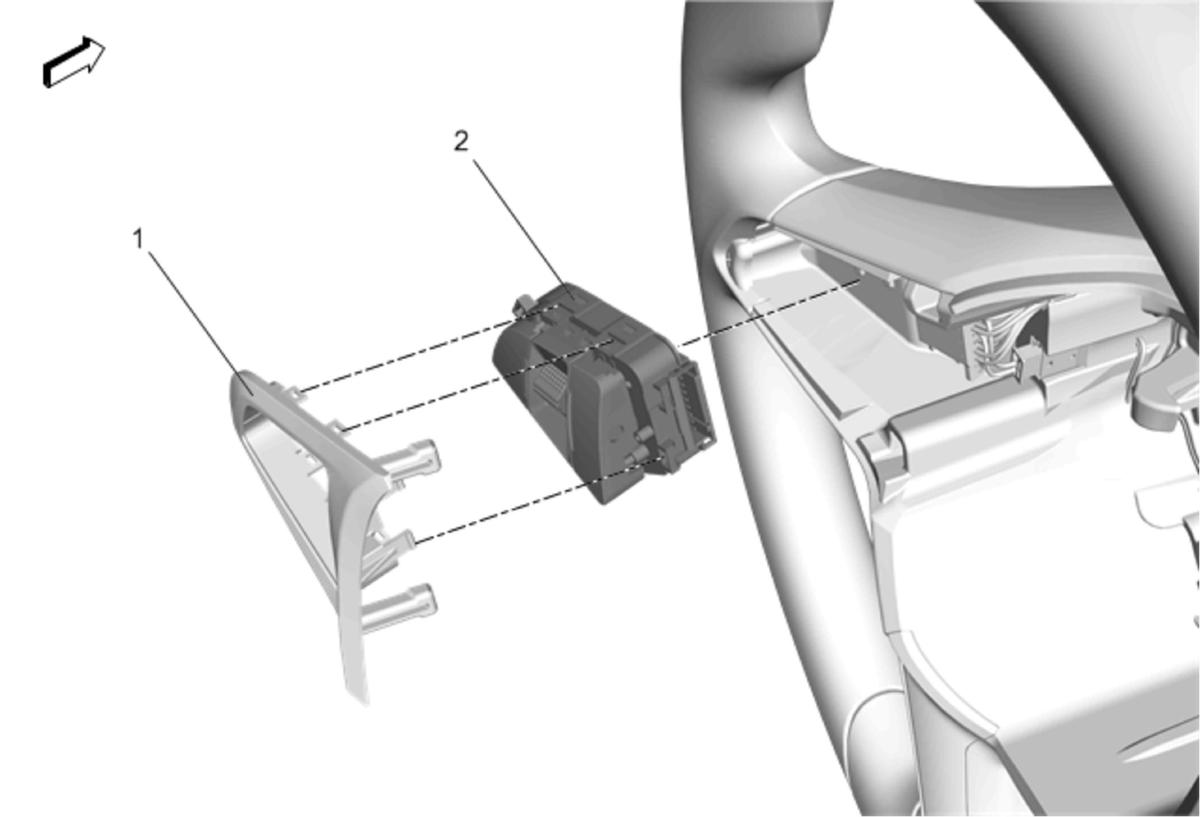

Fig 1: Cruise Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Spoke Control Switch Bezel NOTE: After removing switch bezel and switch assembly together, detach bezel from switch.
2	Cruise Control Switch Assembly Procedure Disconnect the electrical connector. Unclip the cover tabs.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Spoke Control Switch Bezel

NOTE: After removing switch bezel and switch assembly together, detach bezel from switch.

Cruise Control Switch Assembly

Procedure

Disconnect the electrical connector.
Unclip the cover tabs.
