Side Object Detection (UKC)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

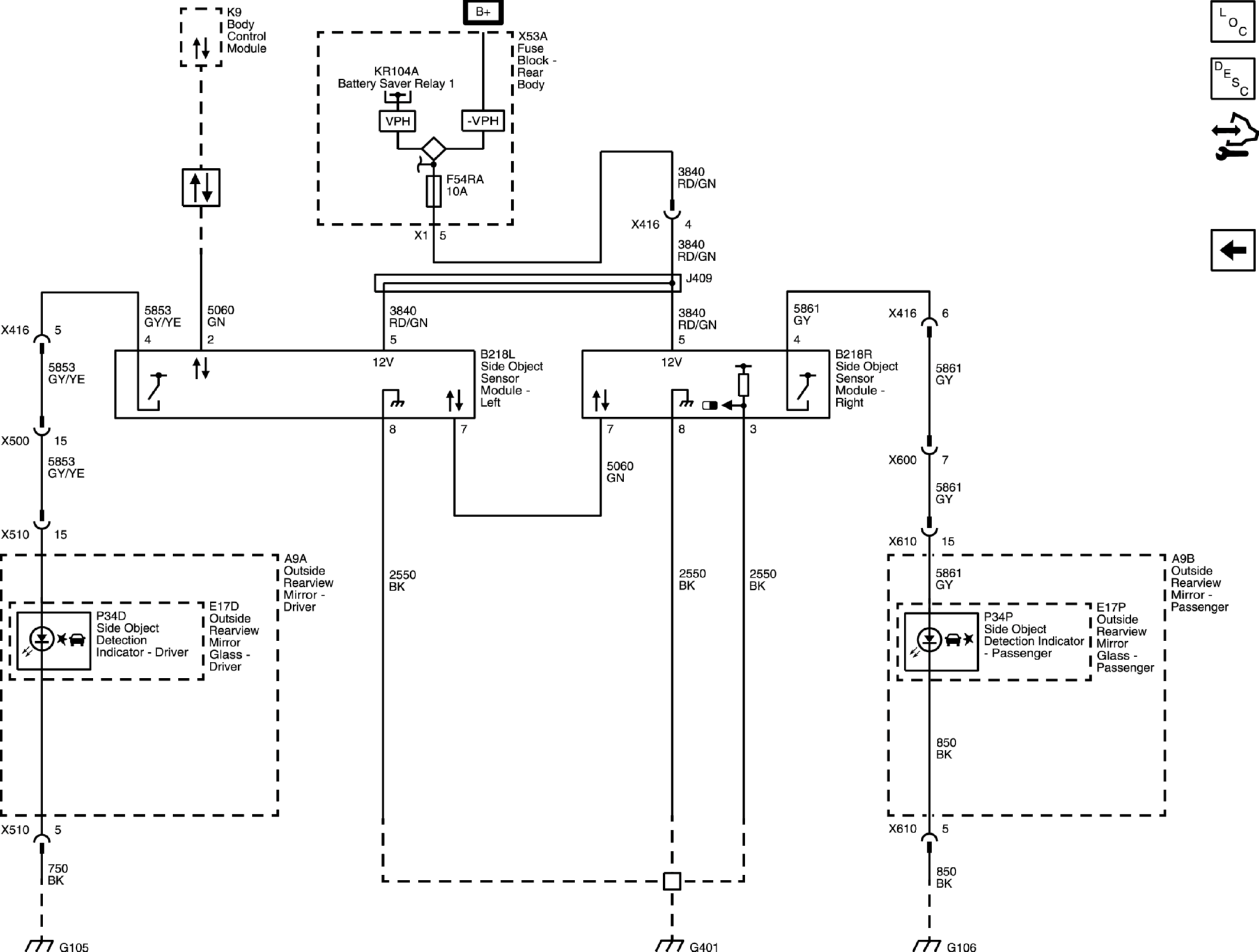

Side Object Detection (UKC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
