Installation Procedure

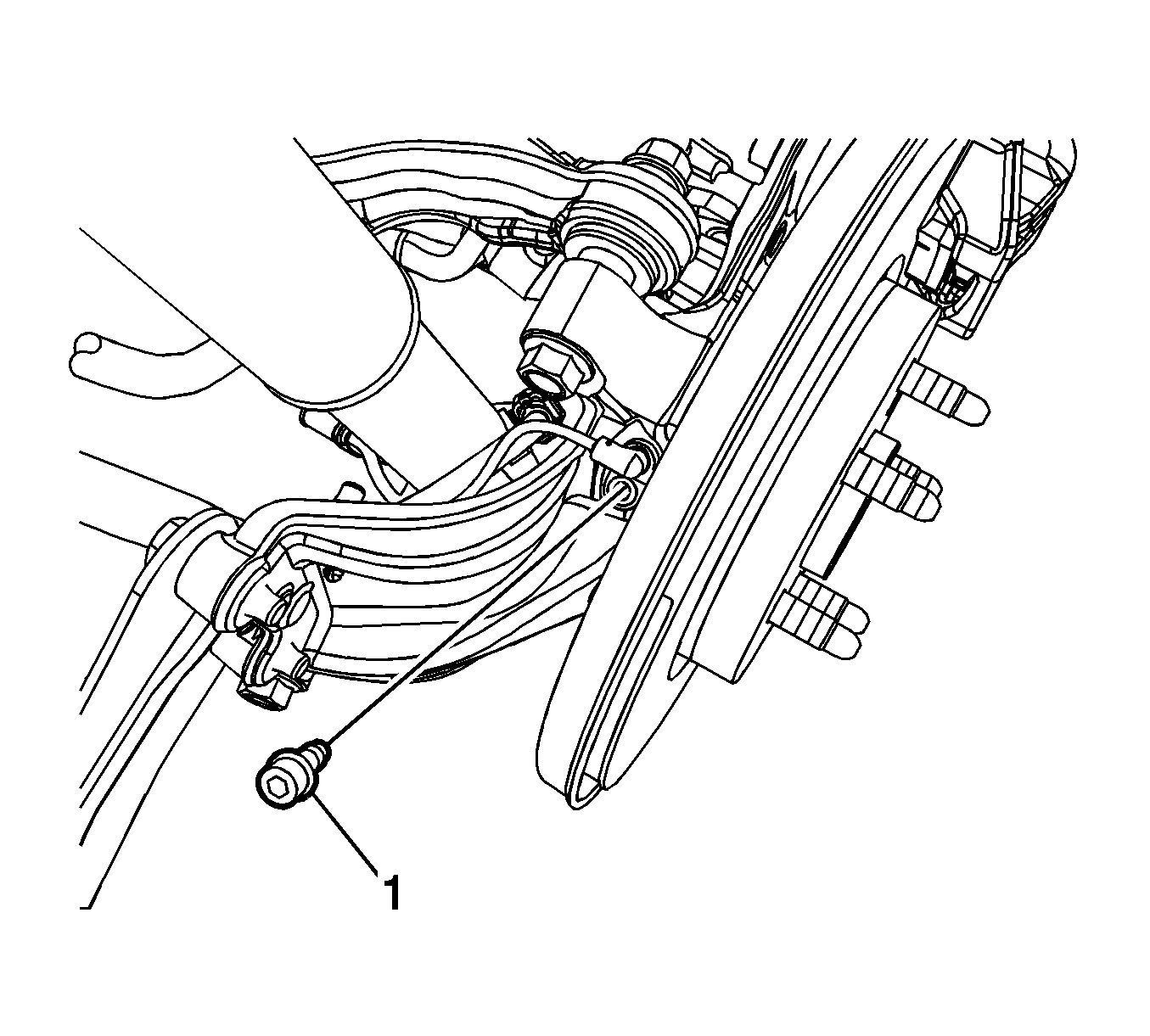

  1. GM2330166

    Install the wheel speed sensor to the rear suspension knuckle.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

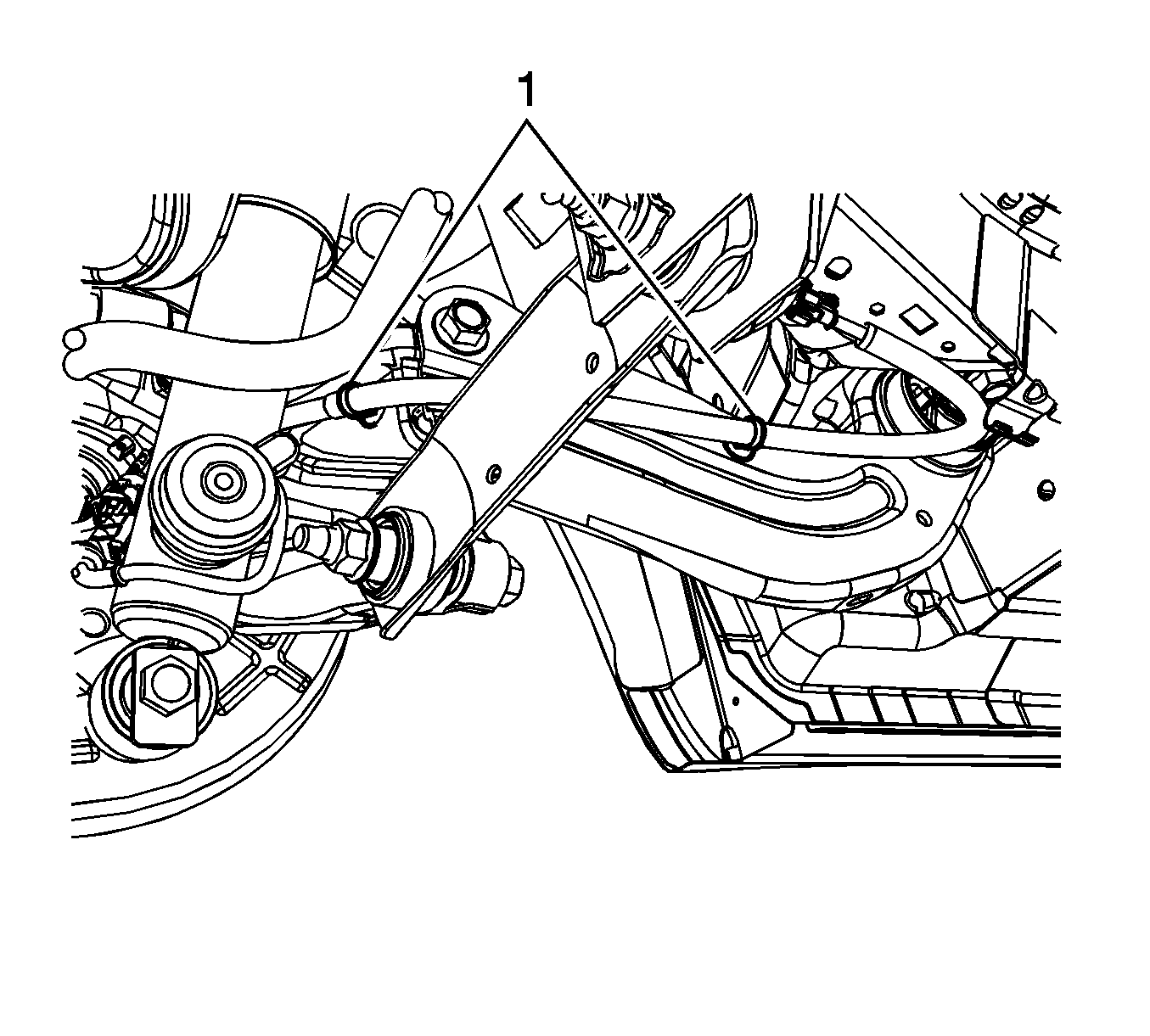

  3. GM2330165

    Install the wheel speed sensor harness clips (1) to the rear suspension bracket.

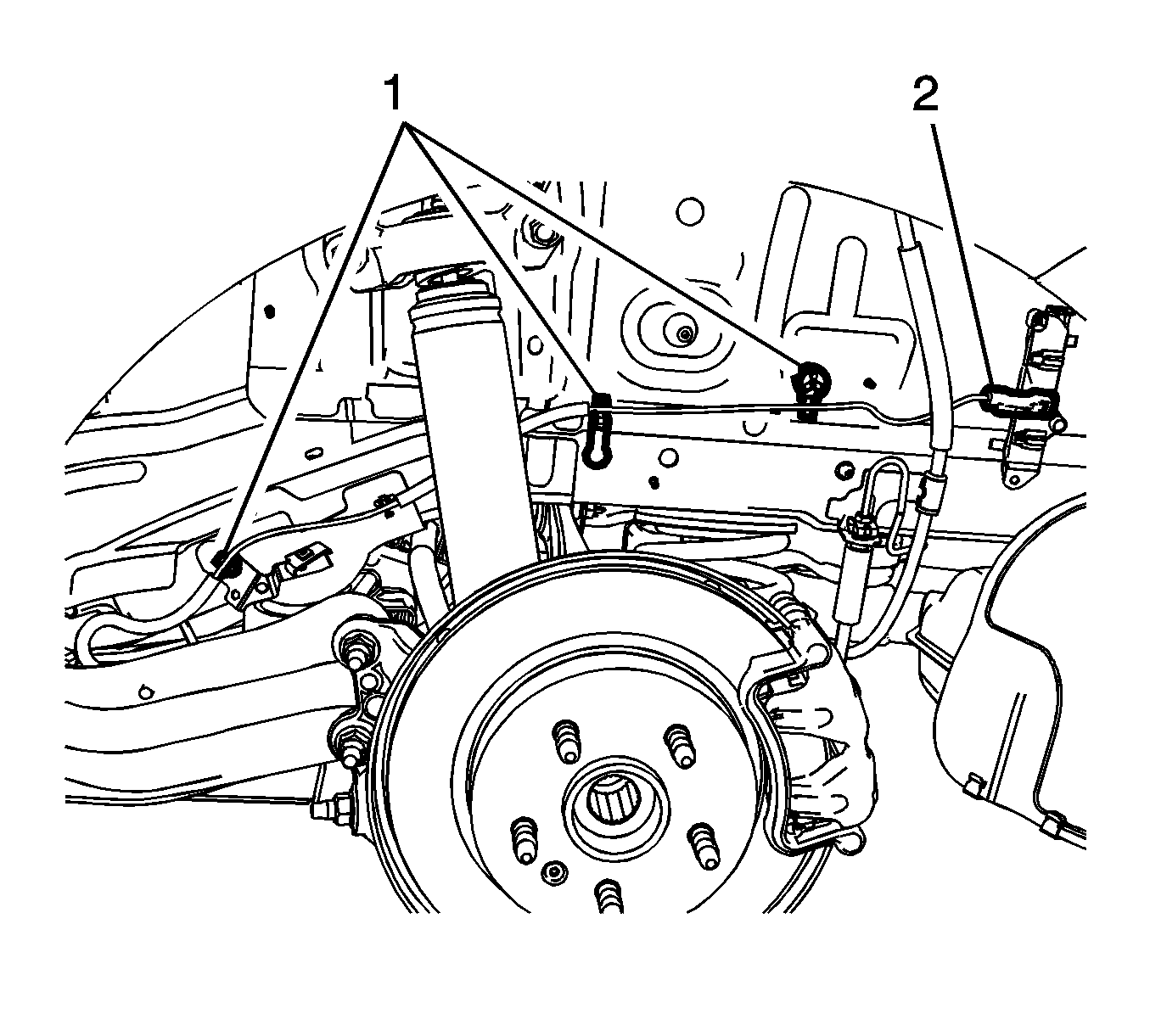

  4. GM2867831

    Install the wheel speed sensor harness clips (1) to the wheelhouse panel.

  5. Connect the wheel speed sensor harness electrical connector (2) and install the connector retainer to the bracket on the wheelhouse panel.
  6. Install the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
  7. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
