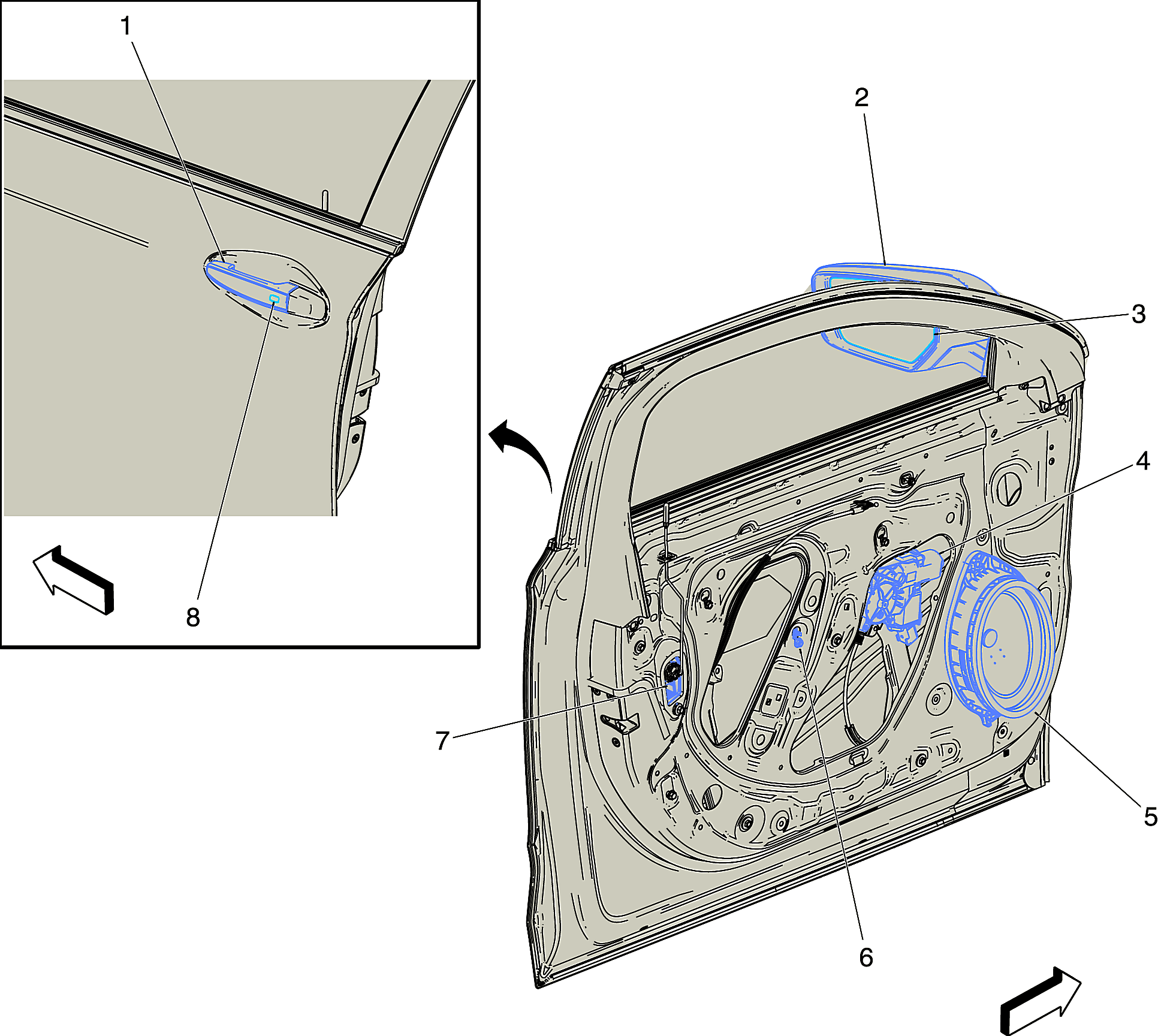

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A24D Door Handle Assembly - Driver Exterior A24D Door Handle Assembly - Driver Exterior (ATH) | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| E17D Outside Rearview Mirror Glass - Driver E17D Outside Rearview Mirror Glass - Driver X2 (DLG/DLL) , or E17D Outside Rearview Mirror Glass - Driver X3 (DLG/DLL) | 3 |
| M74D Window Motor - Driver M74D Window Motor - Driver | 4 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQG) , or P19AG Speaker - Left Front Door (UQS) | 5 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 6 |
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 7 |
| B27D Door Handle Switch - Driver Exterior | 8 |
