Power Steering Components (NJ2)

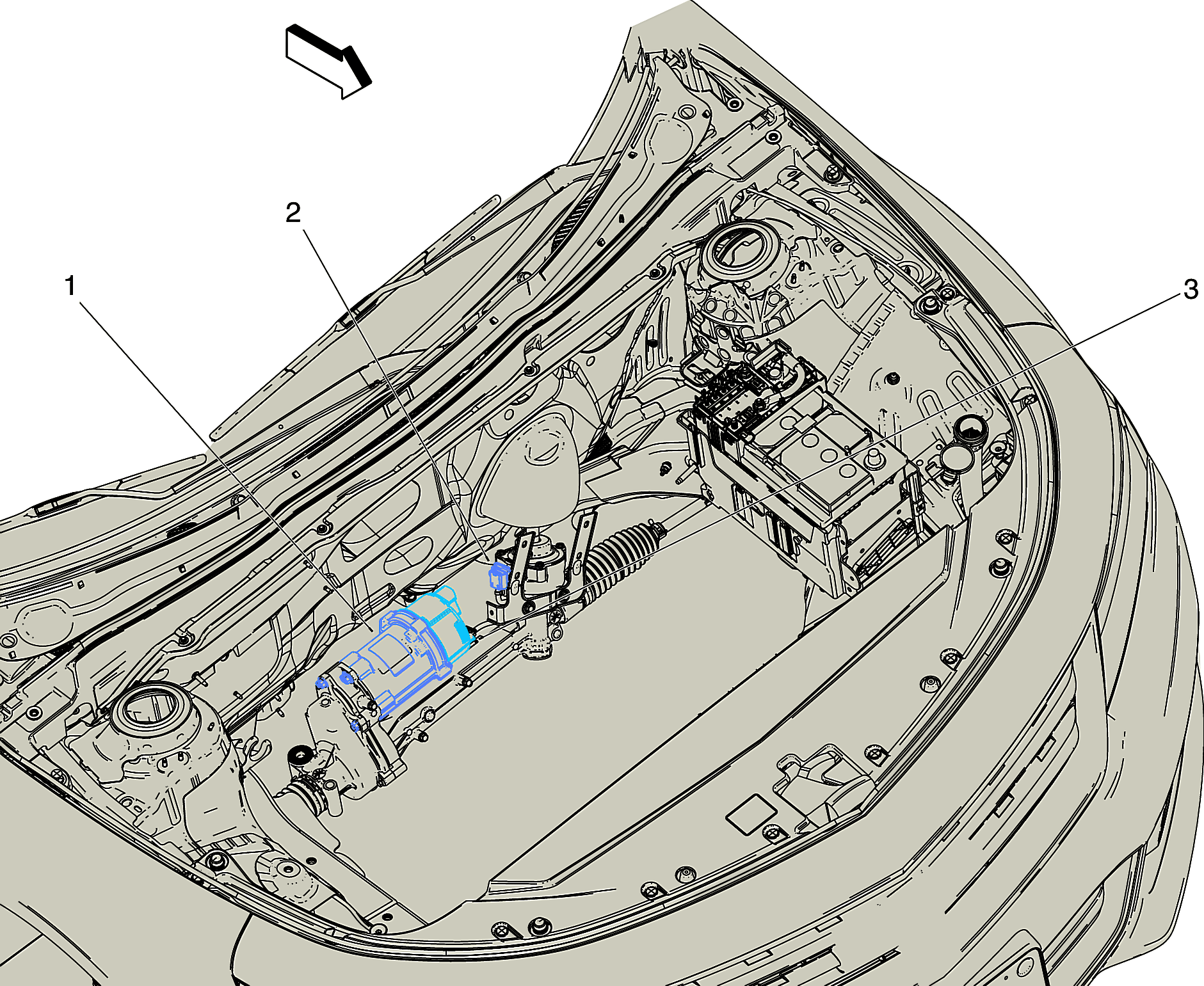

GM2913057Courtesy of GENERAL MOTORS COMPANY
Power Steering Components (NJ2)

Component Name Callout
M38 Power Steering Motor 1
B137 Power Steering Shaft Torque Sensor 2
K43 Power Steering Control Module 3
