Right Side of Passenger Compartment Components

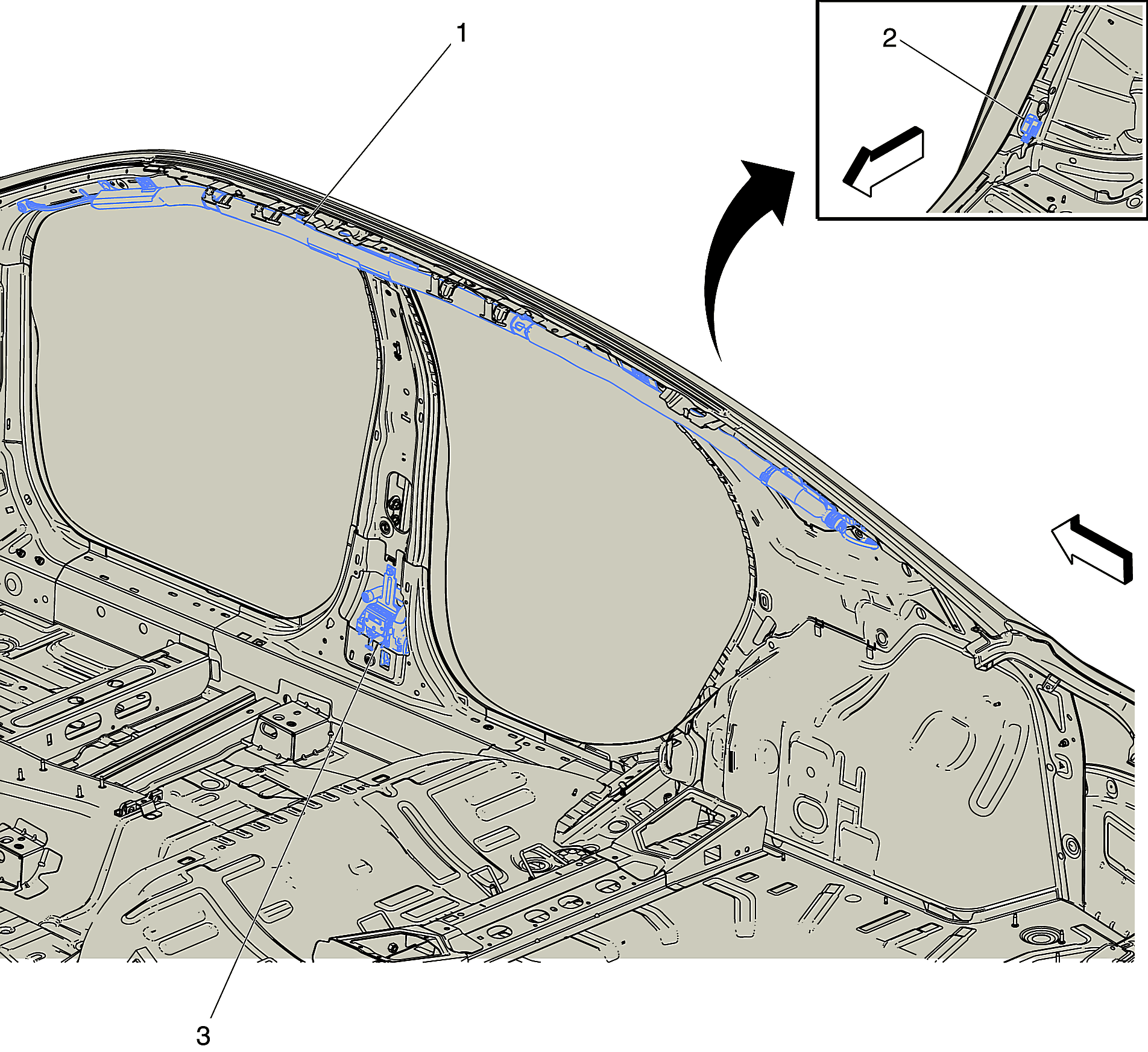

GM2913039Courtesy of GENERAL MOTORS COMPANY
Right Side of Passenger Compartment Components

Component Name Callout
F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right 1
B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear 2
F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger 3
