Fuel Tank Components

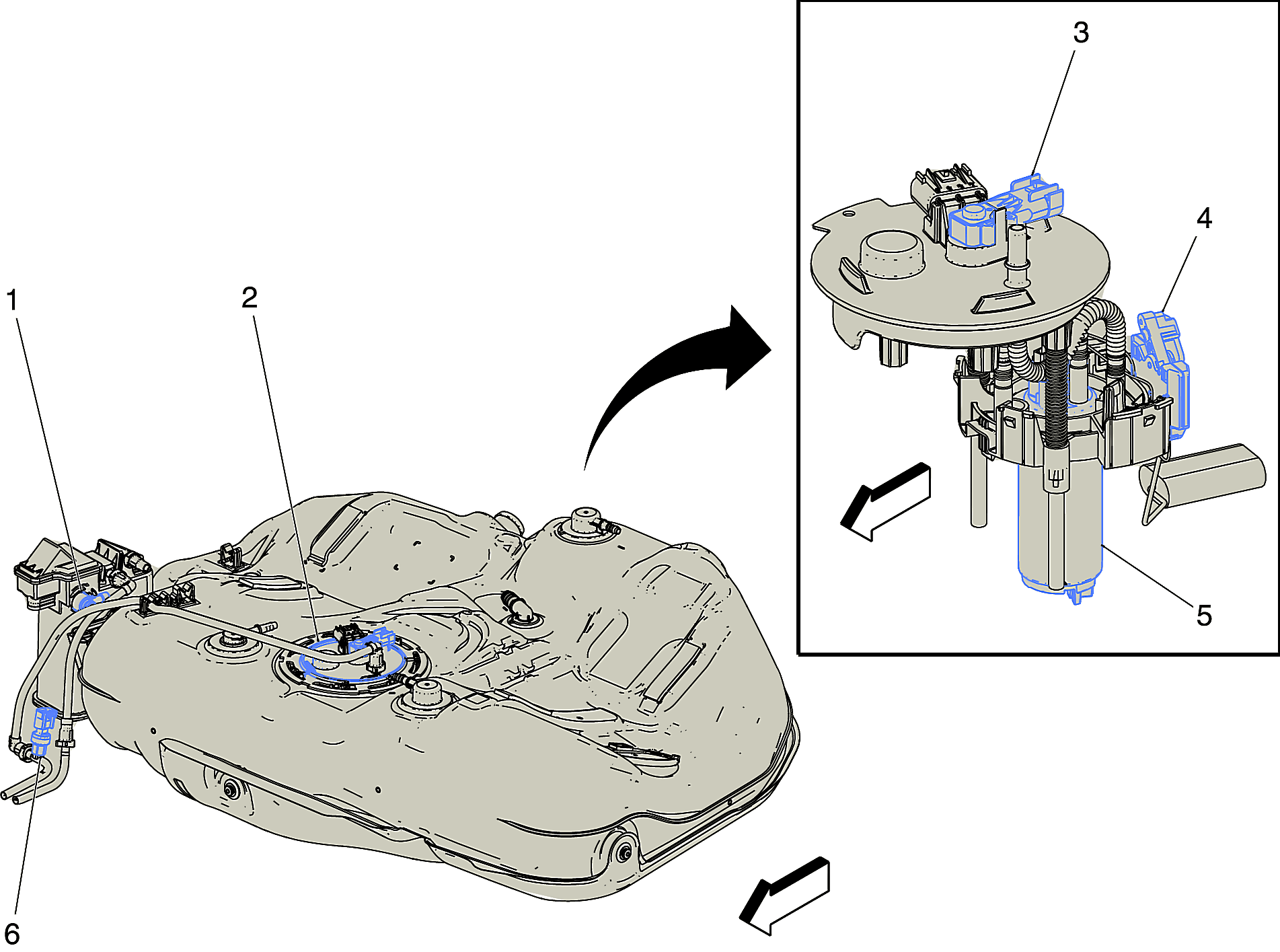

GM2913059Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Components

Component Name Callout
Q13 Evaporative Emission Vent Solenoid Valve 1
A7 Fuel Pump and Level Sensor Assembly 2
B150 Fuel Tank Pressure Sensor 3
B46 Fuel Level Sensor 4
G12 Fuel Pump 5
B47 Fuel Pressure Sensor 6
