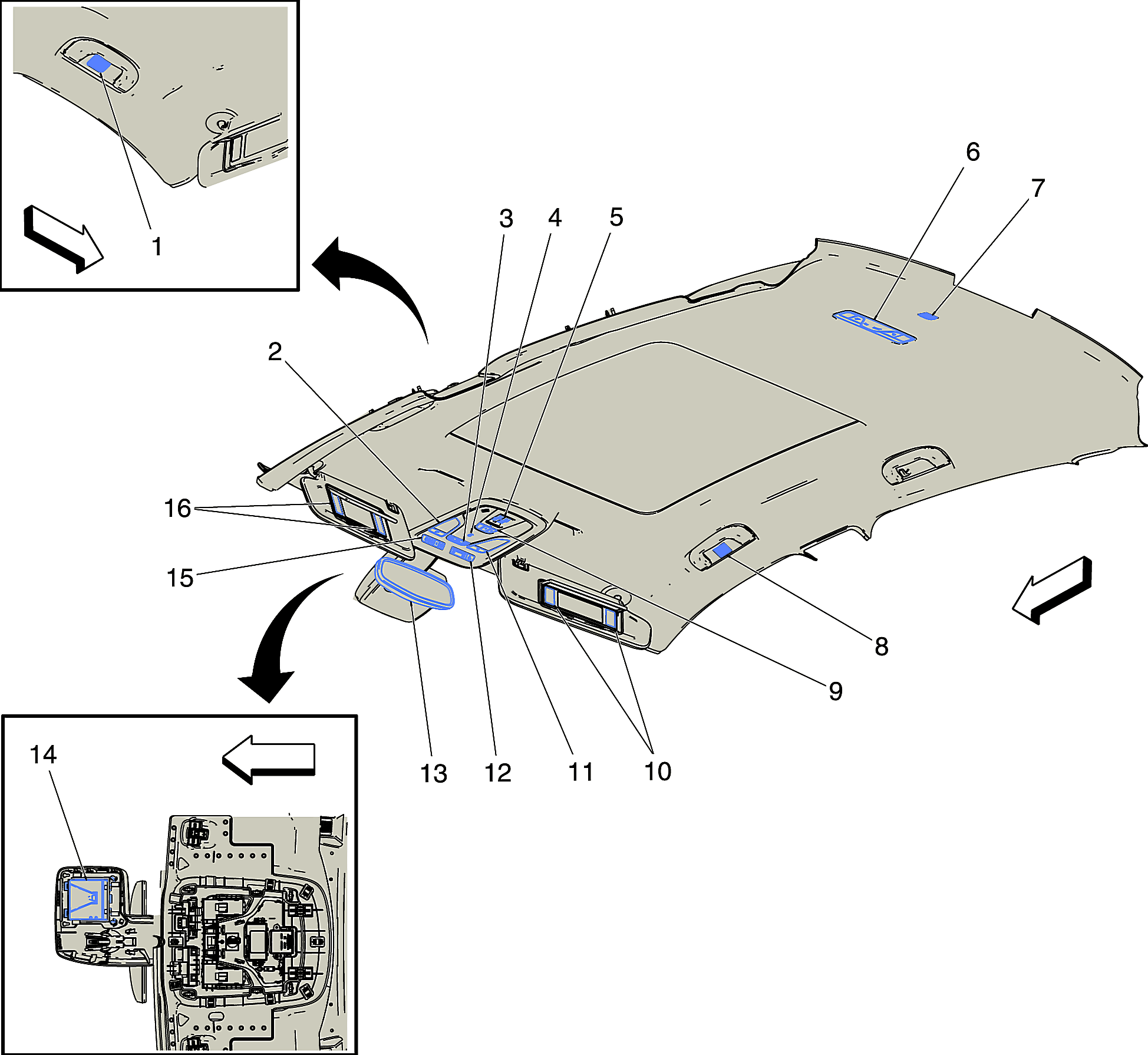

Headliner Components
Headliner Components
| Component Name | Callout |
|---|---|
| B77LF Radio Volume Compensator Interior Noise Microphone - Left Front B77LF Radio Volume Compensator Interior Noise Microphone - Left Front | 1 |
| E37LF Dome/Reading Lamps - Left Front E37LF Dome/Reading Lamps - Left Front | 2 |
| S12 Dome Lamp Switch S12 Dome Lamp Switch | 3 |
| S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch | 4 |
| S72 Sunroof Switch (C3U) S72 Sunroof Switch | 5 |
| E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear | 6 |
| B77R Radio Volume Compensator Interior Noise Microphone - Rear B77R Radio Volume Compensator Interior Noise Microphone - Rear | 7 |
| B77RF Radio Volume Compensator Interior Noise Microphone - Right Front B77RF Radio Volume Compensator Interior Noise Microphone - Right Front | 8 |
| S25 Garage Door Opener (UG1) S25 Garage Door Opener | 9 |
| E31R Sunshade Mirror Lamp - Right E31R Sunshade Mirror Lamp - Right | 10 |
| E37RF Dome/Reading Lamps - Right Front E37RF Dome/Reading Lamps - Right Front | 11 |
| P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator | 12 |
| A10 Inside Rearview Mirror (DD8) A10 Inside Rearview Mirror | 13 |
| B174 Frontview Camera | 14 |
| S51 Telematics Button Assembly (UE1) S51 Telematics Button Assembly | 15 |
| E31L Sunshade Mirror Lamp - Left E37RF Dome/Reading Lamps - Right Front | 16 |
