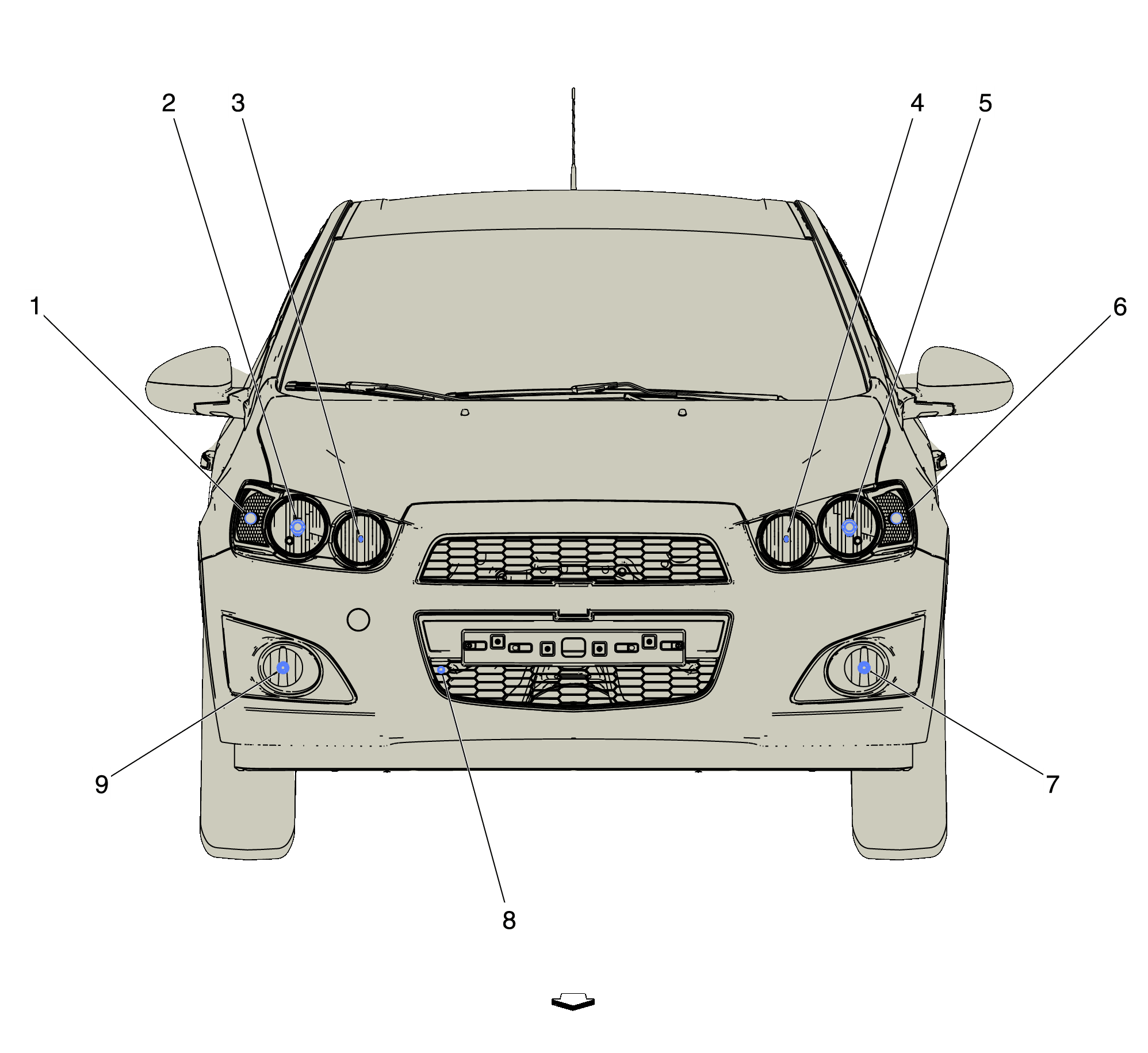

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front | 1 |
| E4H Headlamp - Right Low Beam | 2 |
| E4F Headlamp - Right High Beam | 3 |
| E4E Headlamp - Left High Beam | 4 |
| E4G Headlamp - Left Low Beam | 5 |
| E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front | 6 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front | 7 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 8 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front | 9 |
