Radio Control Switch Replacement - Steering Wheel (Left Rear)

Courtesy of GENERAL MOTORS COMPANY

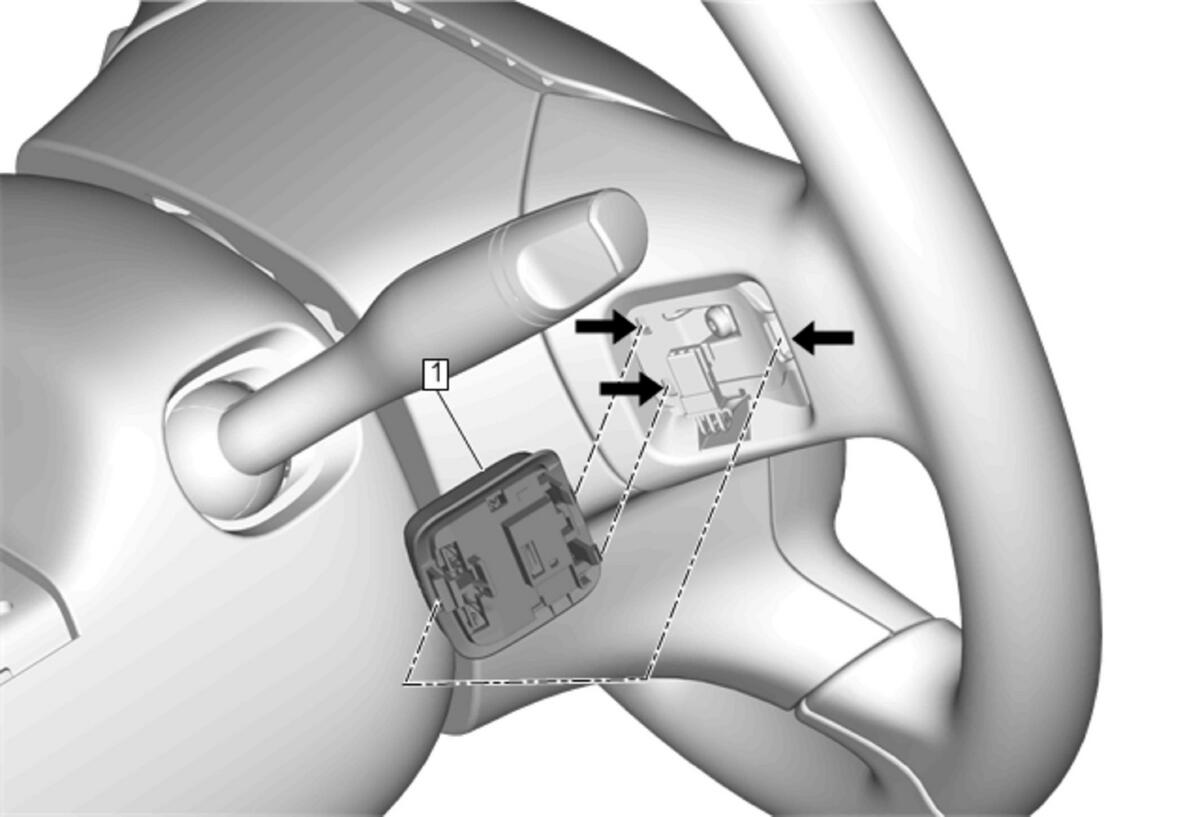

Callout	Component Name
1	Radio Control Switch - Steering Wheel Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connector. NOTE: Use a flat bladed plastic tool to release the steering wheel radio control switch retaining tabs from the bracket attached to the steering wheel.
