Oil Pan Assembly

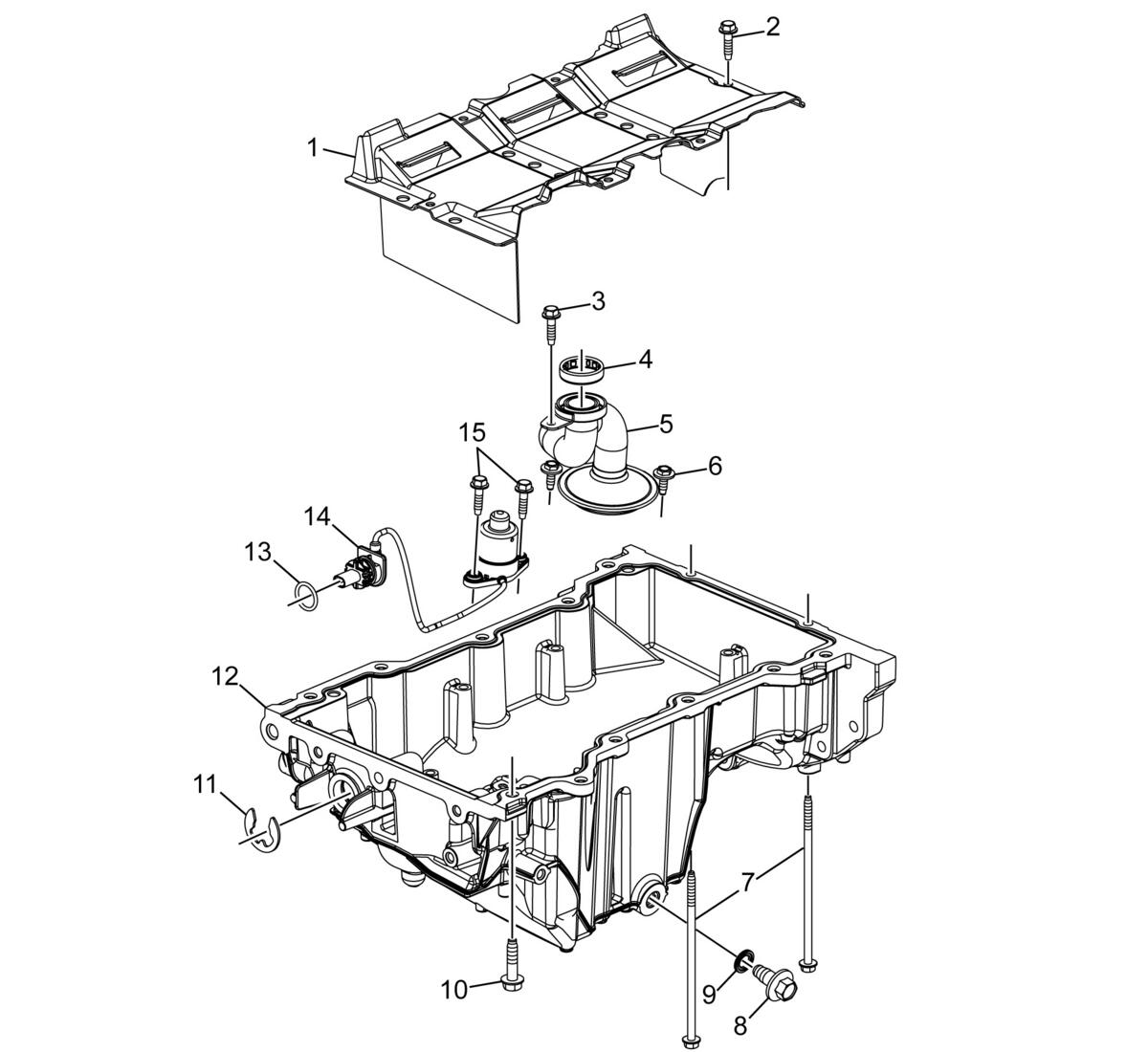

Fig 1: Exploded View Of Oil Pan Assembly Components
GM4580386Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Pan Baffle
2 Oil Pan Baffle Bolt
3 Oil Pump Suction Pipe Bolt
4 Oil Pump Suction Pipe Seal
5 Oil Pump Suction Pipe
6 Oil Pump Suction Pipe Bolt
7 Oil Pan Bolt - Long
8 Oil Pan Drain Plug
9 Oil Pan Drain Plug Seal
10 Oil Pan Bolt
11 Engine Oil Level Switch Clip
12 Oil Pan
13 Engine Oil Level Sensor Seal
14 Engine Oil Level Sensor
15 Engine Oil Level Sensor Bolt
