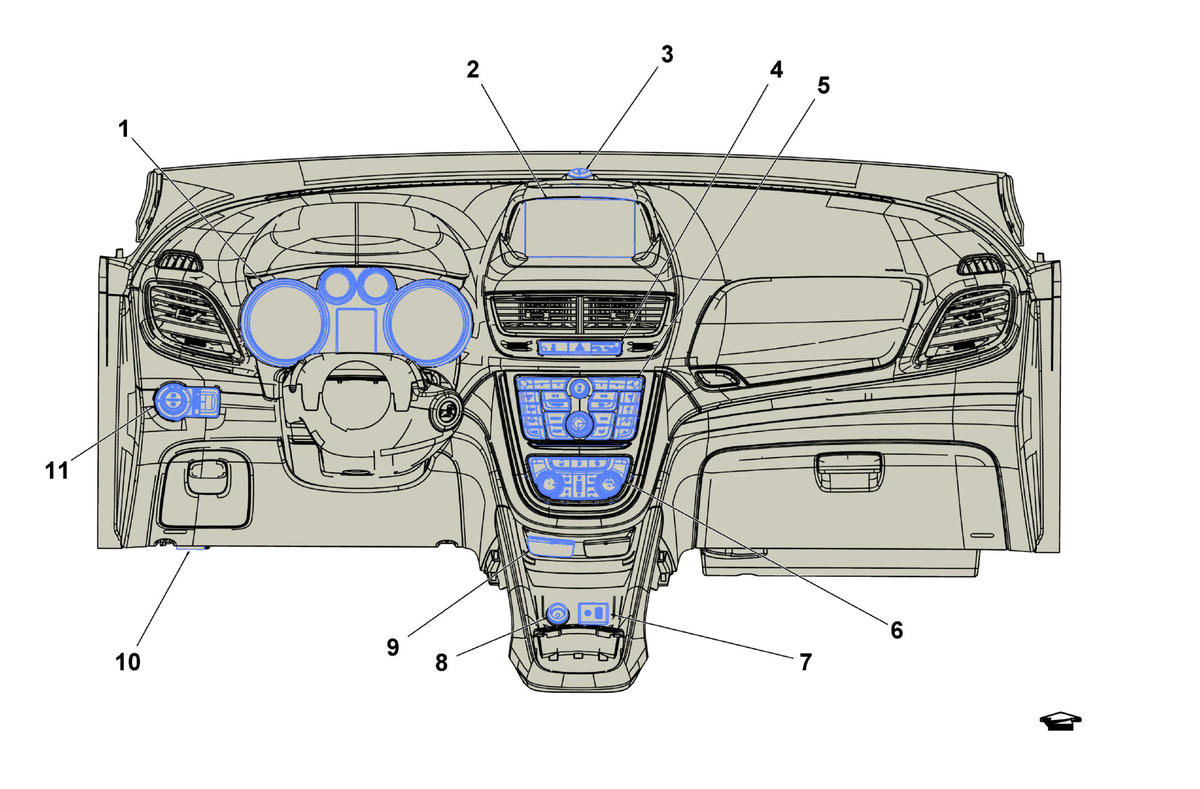

Front of Instrument Panel Components (Buick)

GM4570687Courtesy of GENERAL MOTORS COMPANY
Front of Instrument Panel Components (Buick)

Component Name Callout
P16 Instrument Cluster P16 Instrument Cluster 1
P17 Info Display Module P17 Info Display Module X1 , and P17 Info Display Module X2 2
B10B Ambient Light/Sunload Sensor (CJ2/C4P) B10B Ambient Light/Sunload Sensor 3
P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator 4
A11 Radio A11 Radio X1 (IO5/IO6) , A11 Radio X10 (IO5/IO6) , A11 Radio X2 (IO5/IO6) , A11 Radio X6 (IO5/IO6) , and A11 Radio X9 (IO5/IO6) 5
A26 HVAC Controls A26 HVAC Controls 6
X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , and X83 Auxiliary Audio Input X2 7
E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle 8
S155 Lane Departure Warning Switch (UFL) S155 Lane Departure Warning Switch 9
X84 Data Link Connector X84 Data Link Connector 10
S30 Headlamp Switch S30 Headlamp Switch 11
