Steering Column Components (Buick)

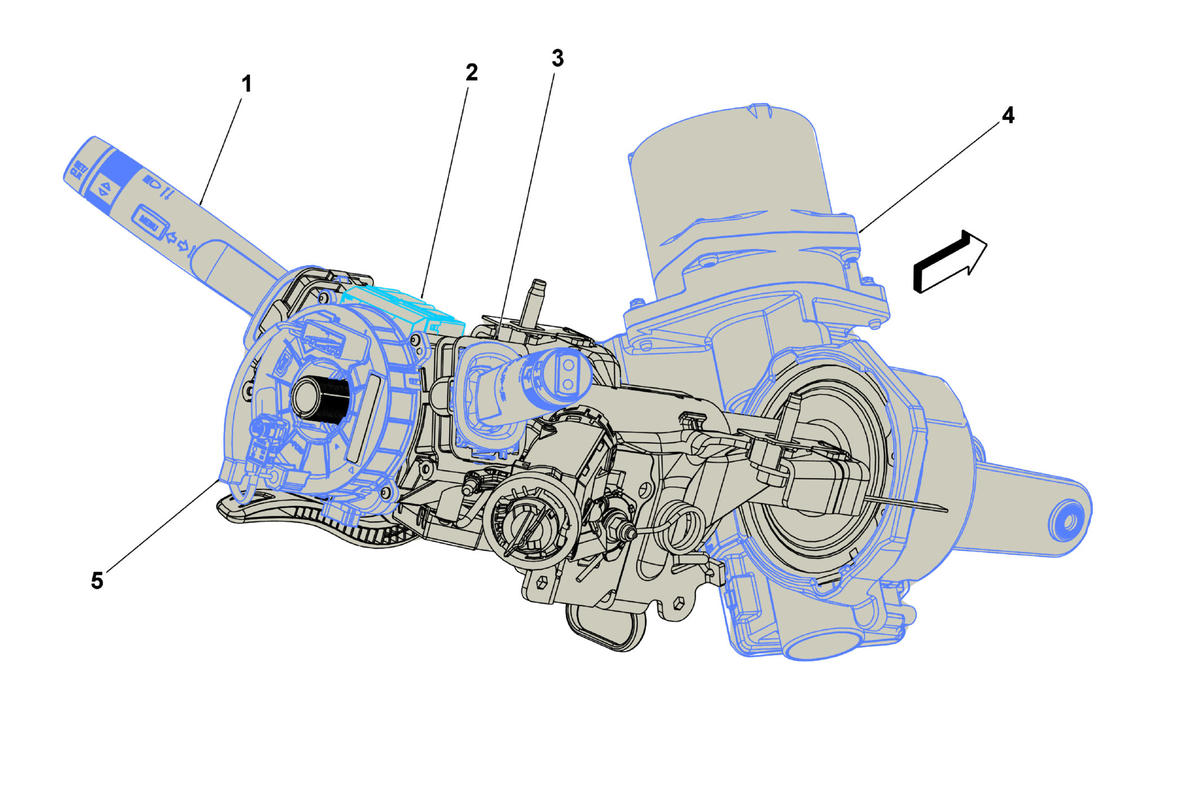

GM4625533Courtesy of GENERAL MOTORS COMPANY
Steering Column Components (Buick)

Component Name Callout
S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch 1
X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , X85 Steering Wheel Air Bag Coil X2 , and X85 Steering Wheel Air Bag Coil X4 2
S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch 3
K43 Power Steering Control Module K43 Power Steering Control Module X1 , and K43 Power Steering Control Module X2 4
B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor 5
