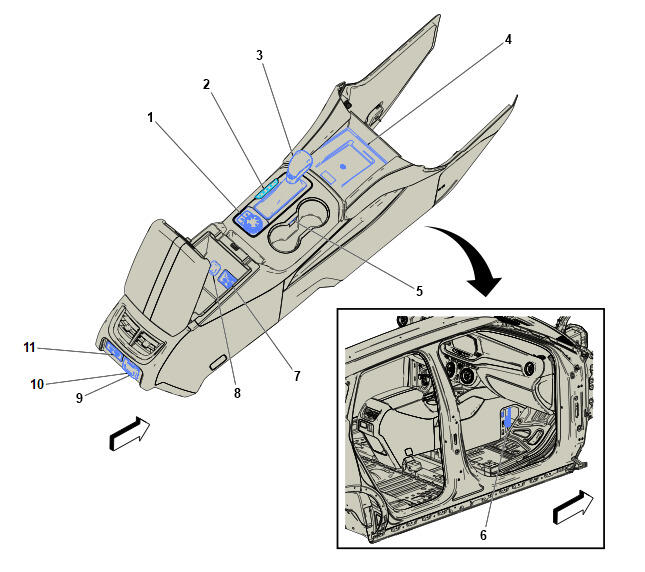

Center Console Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
S126 Drive Mode Select Switch S126 Drive Mode Select Switch	1
P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator	2
S3 Transmission Shift Lever S3 Transmission Shift Lever	3
T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C)	4
E1AC Accent Lamp - Center Console Cupholder (TSQ) E1AC Accent Lamp - Center Console Cupholder (TSQ)	5
X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel	6
X83 Auxiliary Audio Input (IOU) X83 Auxiliary Audio Input X1 (IOU) , or X83 Auxiliary Audio Input X2 (IOU)	7
X80D Accessory Power Receptacle - Center Console Compartment X80D Accessory Power Receptacle - Center Console Compartment	8
X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6) , or X81 Accessory Power Receptacle - 110V AC X2 (KI6)	9
X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7) , or X81B Accessory Power Receptacle - 220V AC X2 (KI7)	10
X92C USB Receptacle - Center Console Rear X92C USB Receptacle - Center Console Rear	11
