Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

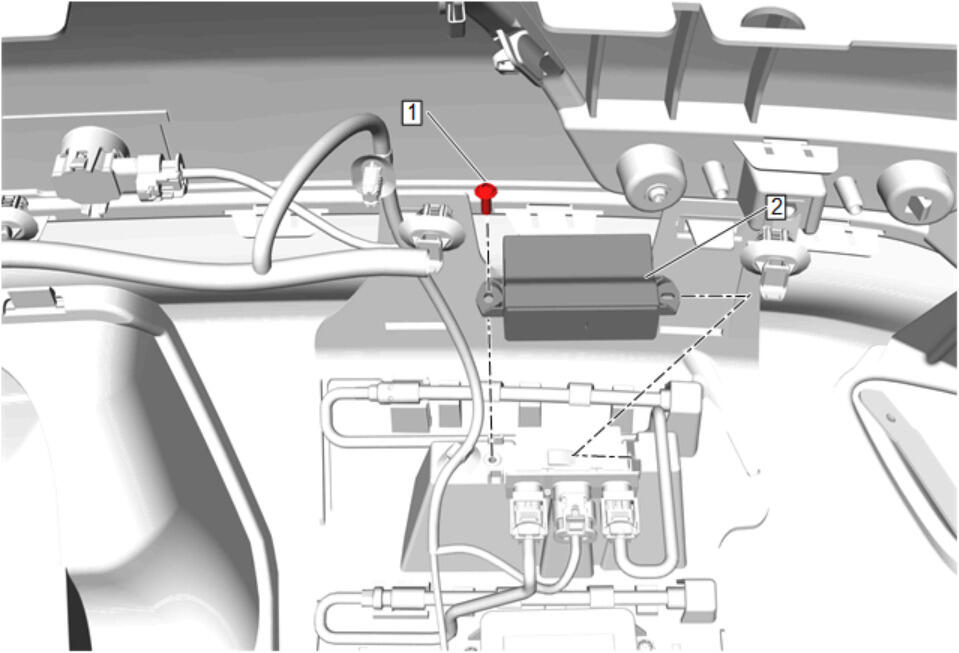

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Rear Closure Hands Free Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Release the retaining tabs. Remove the support and lower the vehicle.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Rear Closure Hands Free Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Module

Procedure
