Installation Procedure

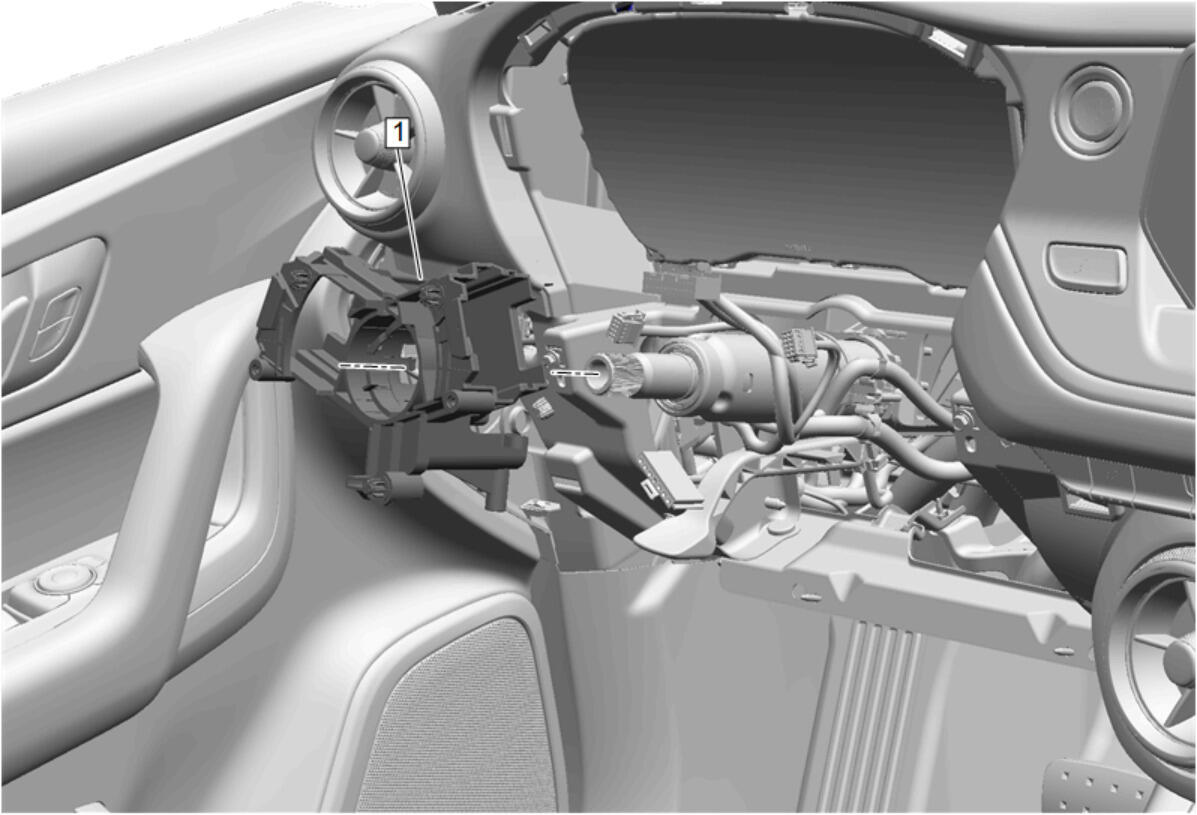

  1. GM5131869Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch Bracket (1) - Install

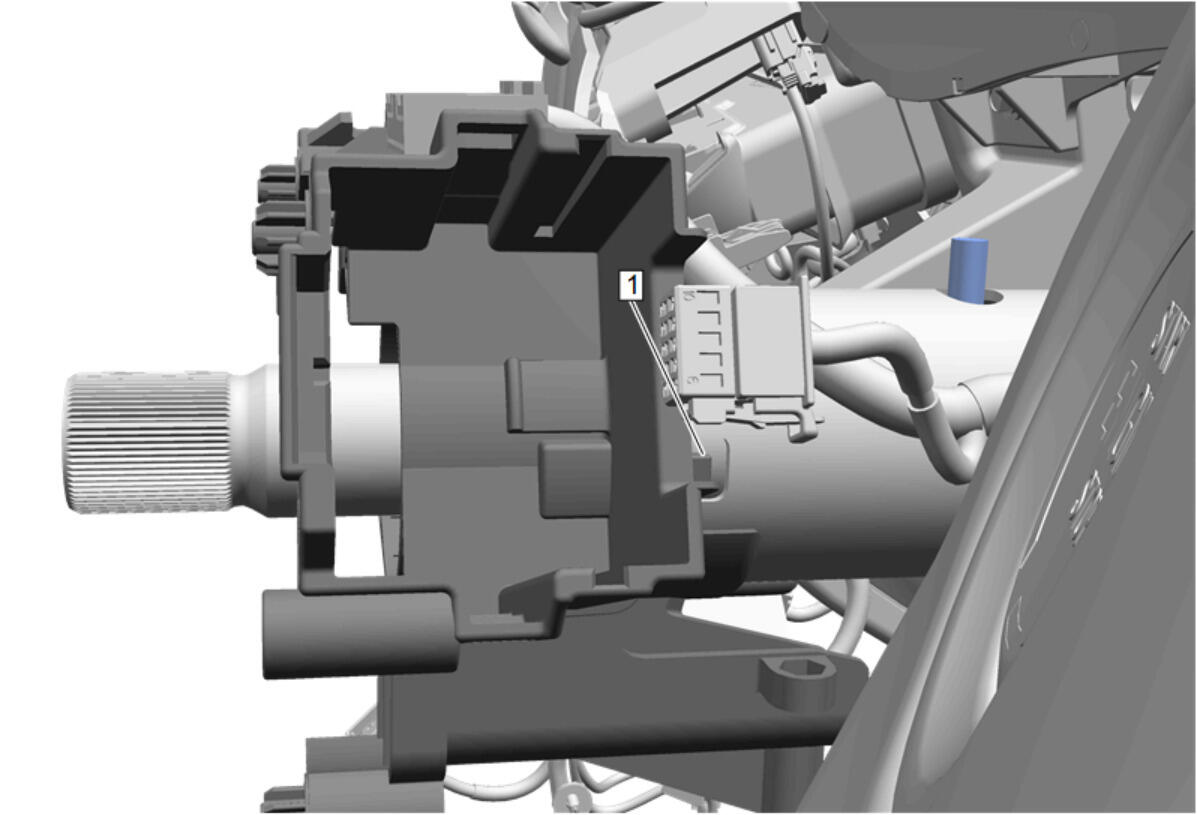

  2. GM5042673Courtesy of GENERAL MOTORS COMPANY

    Ensure the locking tab (1) on the right side of the turn signal switch bracket is fully seated.

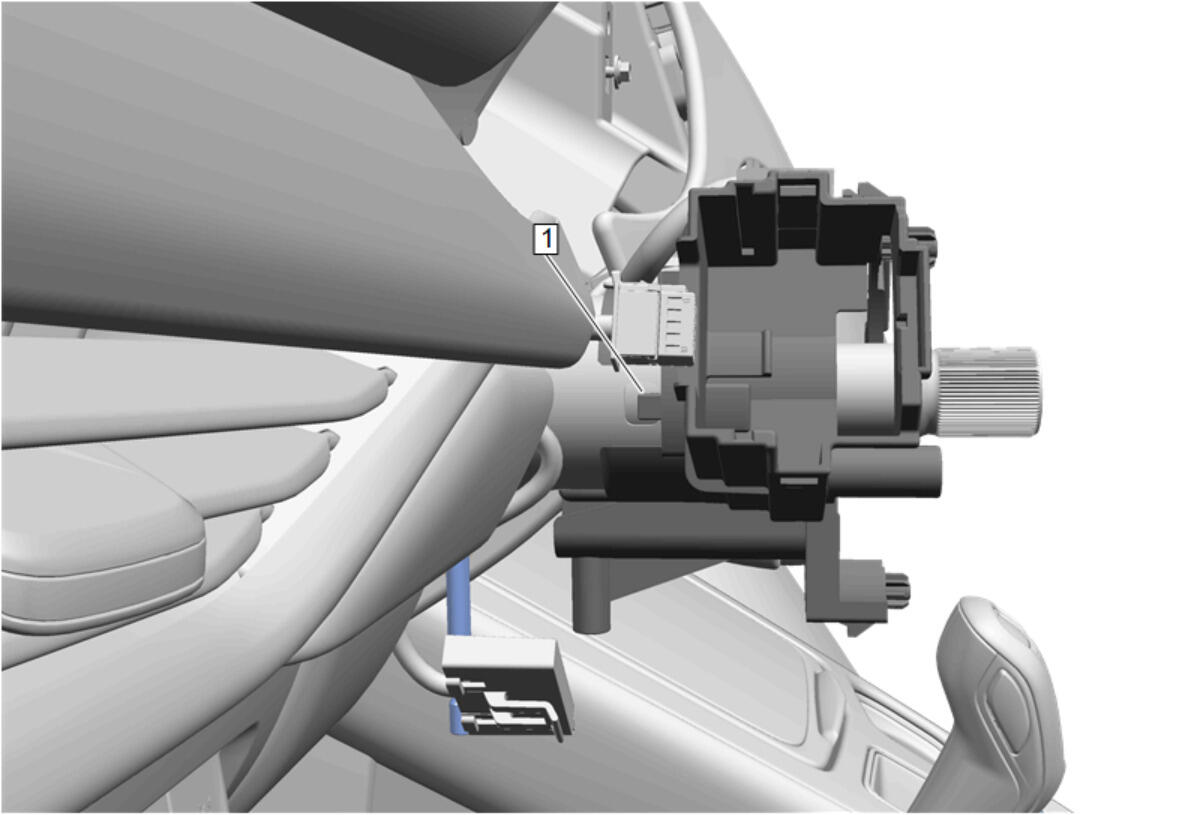

  3. GM5042665Courtesy of GENERAL MOTORS COMPANY

    Ensure the locking tab (1) on the left side of the turn signal switch bracket is fully seated.

  4. Windshield Wiper and Washer Switch (1) - Install - Windshield Wiper and Windshield Washer Switch Replacement
  5. Turn Signal Switch (1) - Install - Turn Signal Switch Replacement

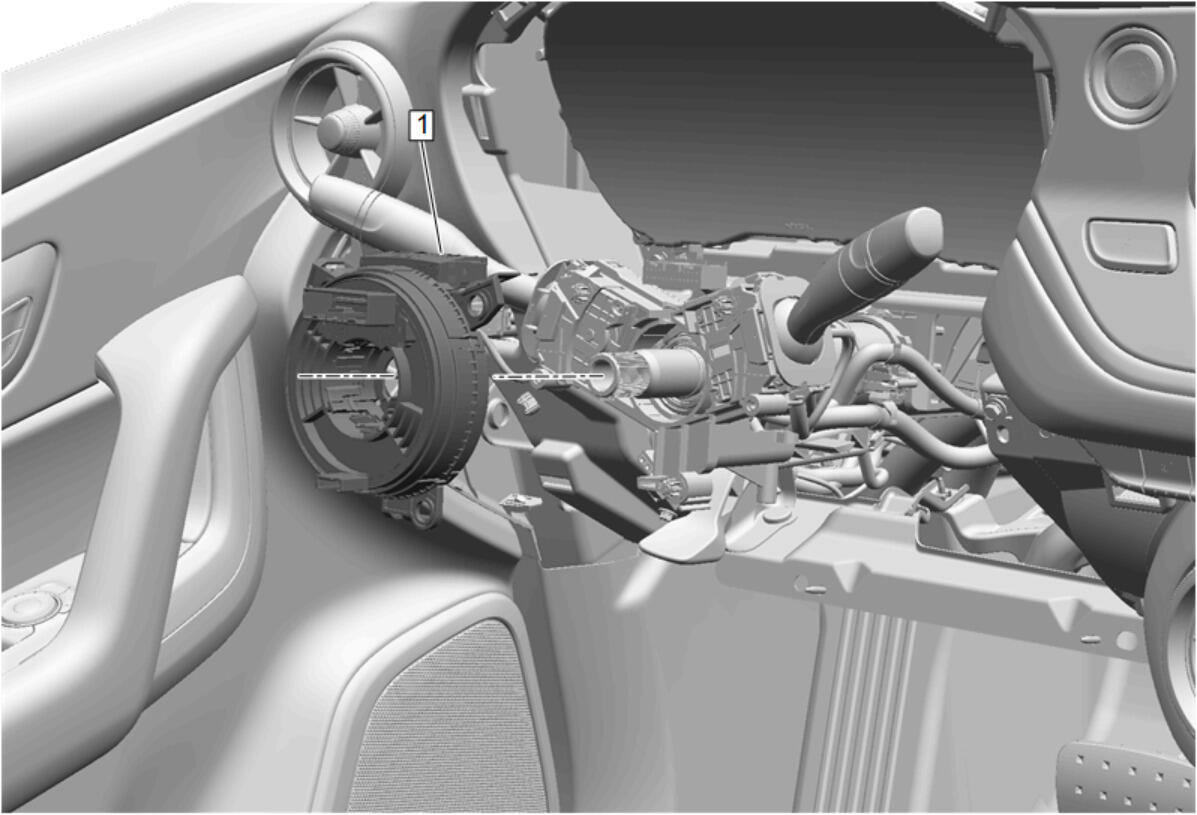

  6. GM5131723Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Coil (1) - Install - Steering Wheel Airbag Coil Replacement

  7. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement (N37) , or Steering Column Lower Trim Cover Replacement (N38)
  8. GM5131786Courtesy of GENERAL MOTORS COMPANY

    Install the steering wheel. (1) Steering Wheel Replacement
