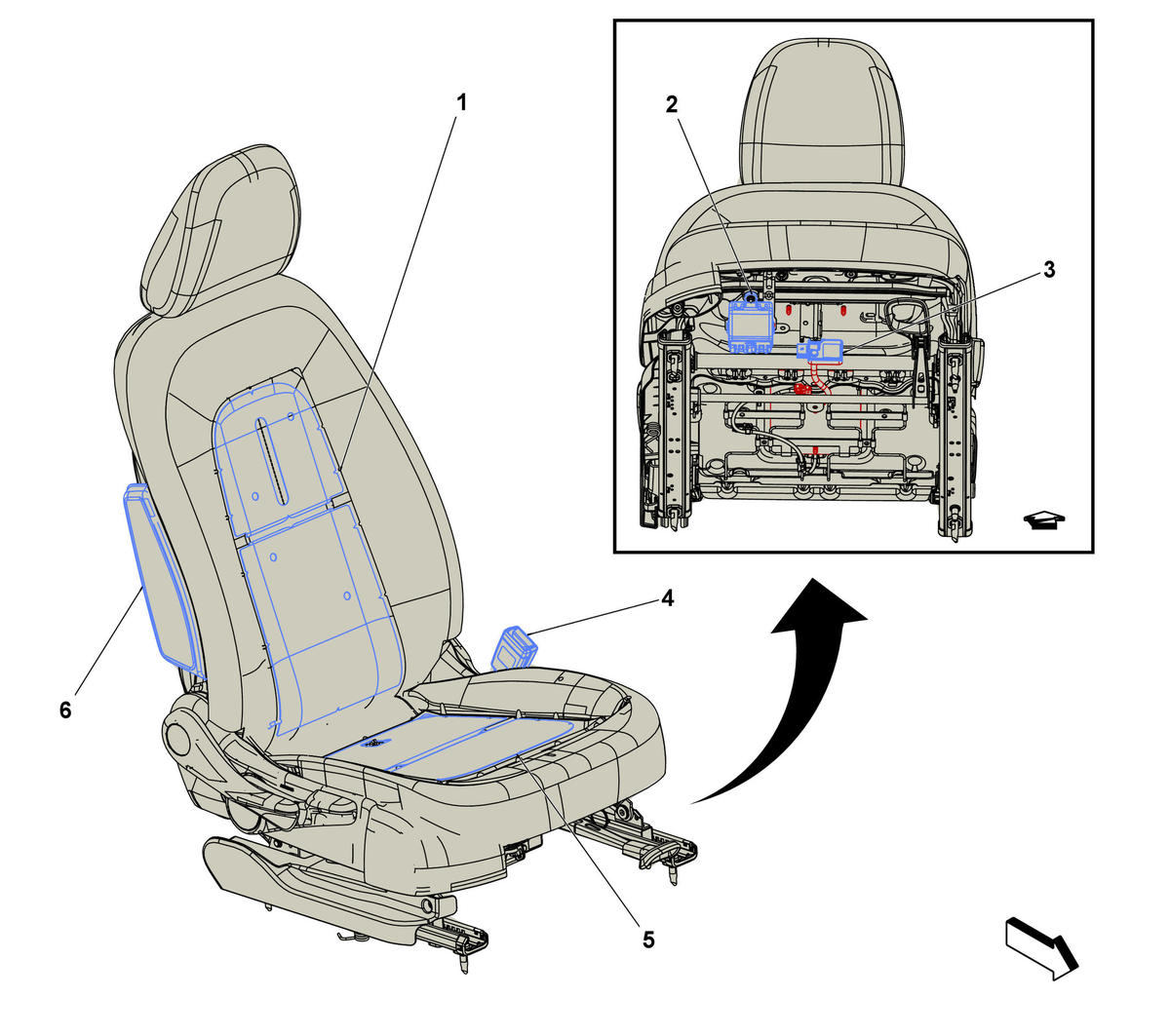

Passenger Seat Components
Passenger Seat Components
| Component Name | Callout |
|---|---|
| E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) | 1 |
| K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1) , or K29F Seat Heating Control Module - Front X2 (KA1) | 2 |
| K85 Passenger Presence Module K85 Passenger Presence Module | 3 |
| B88P Seat Belt Switch - Passenger B88P Seat Belt Switch - Passenger (AY0/AYF) | 4 |
| E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) | 5 |
| F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front | 6 |
