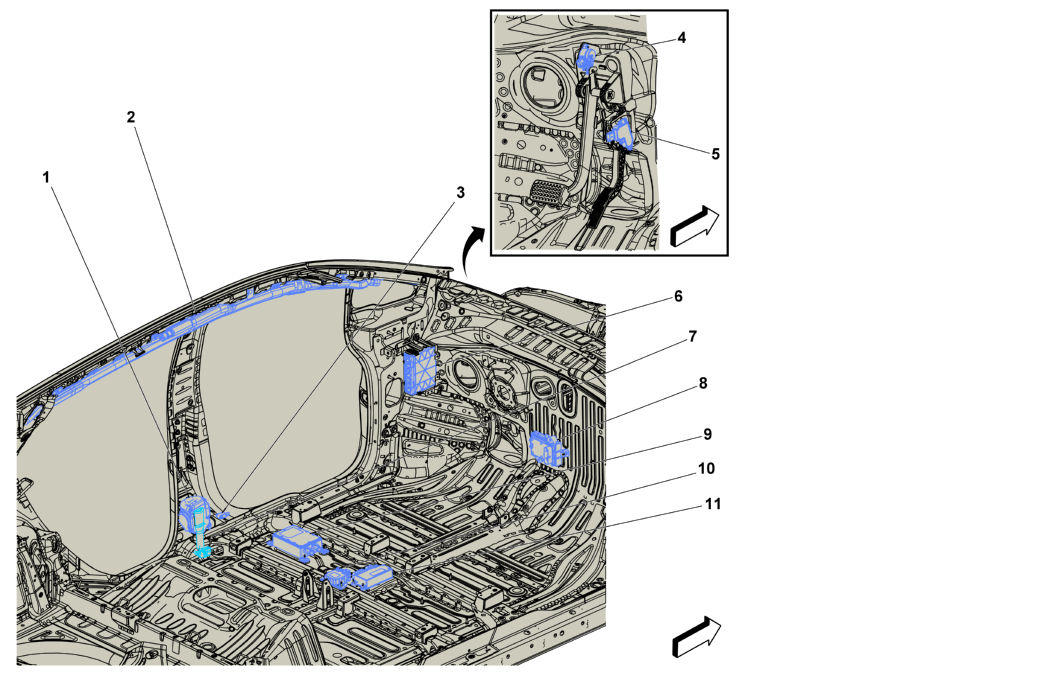

Left Front of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver	1
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left	2
B63L Side Impact Sensor - Left (AY0) B63L Side Impact Sensor - Left (AY0)	3
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor	4
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor	5
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7	6
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver	7
K38 Chassis Control Module K38 Chassis Control Module	8
K190 Power Line Communication Module K190 Power Line Communication Module X1 , or K190 Power Line Communication Module X2	9
K132 Pedestrian Alert Sound Control Module K132 Pedestrian Alert Sound Control Module	10
K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0+MAW) , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AYF)	11
