Right Rear of Passenger Compartment Components

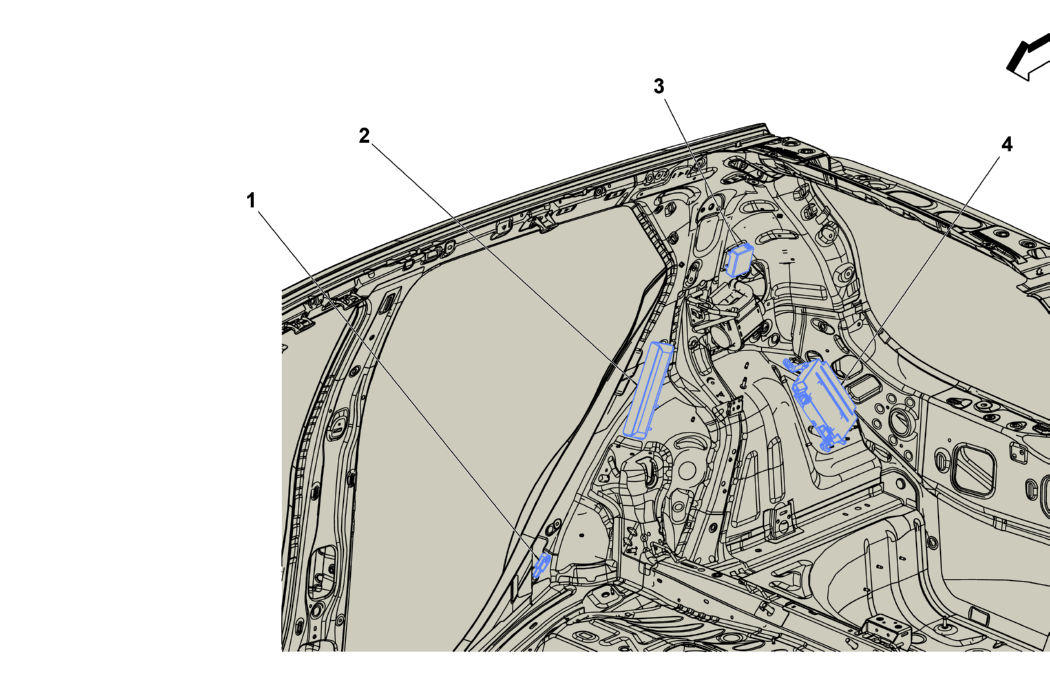

GM5152629Courtesy of GENERAL MOTORS COMPANY
Right Rear of Passenger Compartment Components

Component Name Callout
B63RR Side Impact Sensor - Right Rear (AYF/AYG) B63RR Side Impact Sensor - Right Rear (AYF) 1
F106RR Seat Side Air Bag - Right Rear (AYF) F106RR Seat Side Air Bag - Right Rear (AYF) 2
K183 UHF Short Range Low Energy Remote Control Access Transceiver K183 UHF Short Range Low Energy Remote Control Access Transceiver (-BOP) , or K183 UHF Short Range Low Energy Remote Control Access Transceiver (BOP/BOX) 3
K157 Video Processing Control Module K157 Video Processing Control Module X1 , or K157 Video Processing Control Module X3 (UV2) , or K157 Video Processing Control Module X4 , or K157 Video Processing Control Module X5 4
