Front View Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU)

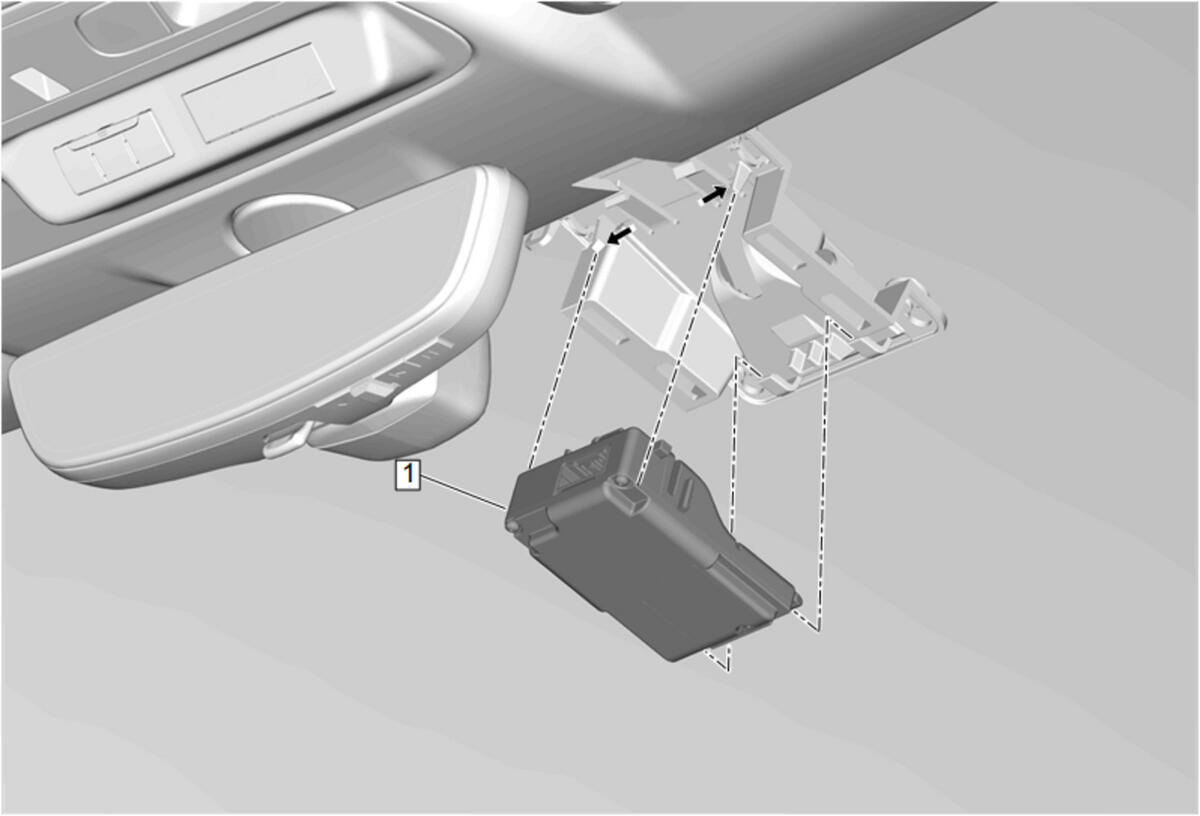

1	Front View Camera Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Front View Camera

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
