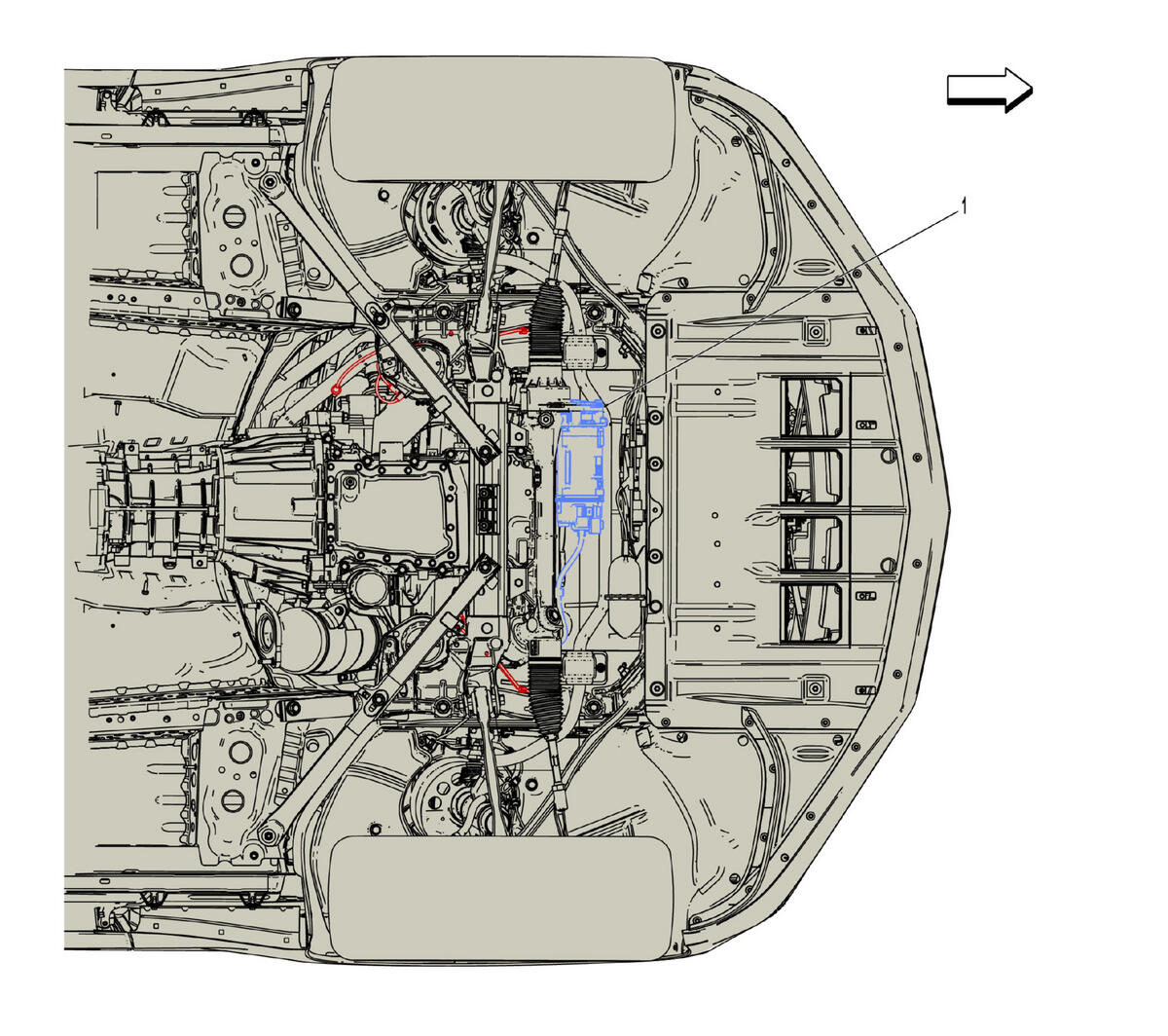

Below Engine Compartment Components

GM5512300Courtesy of GENERAL MOTORS COMPANY
Below Engine Compartment Components

Component Name Callout
K43 Power Steering Control Module K43 Power Steering Control Module X1 , or K43 Power Steering Control Module X2 1
