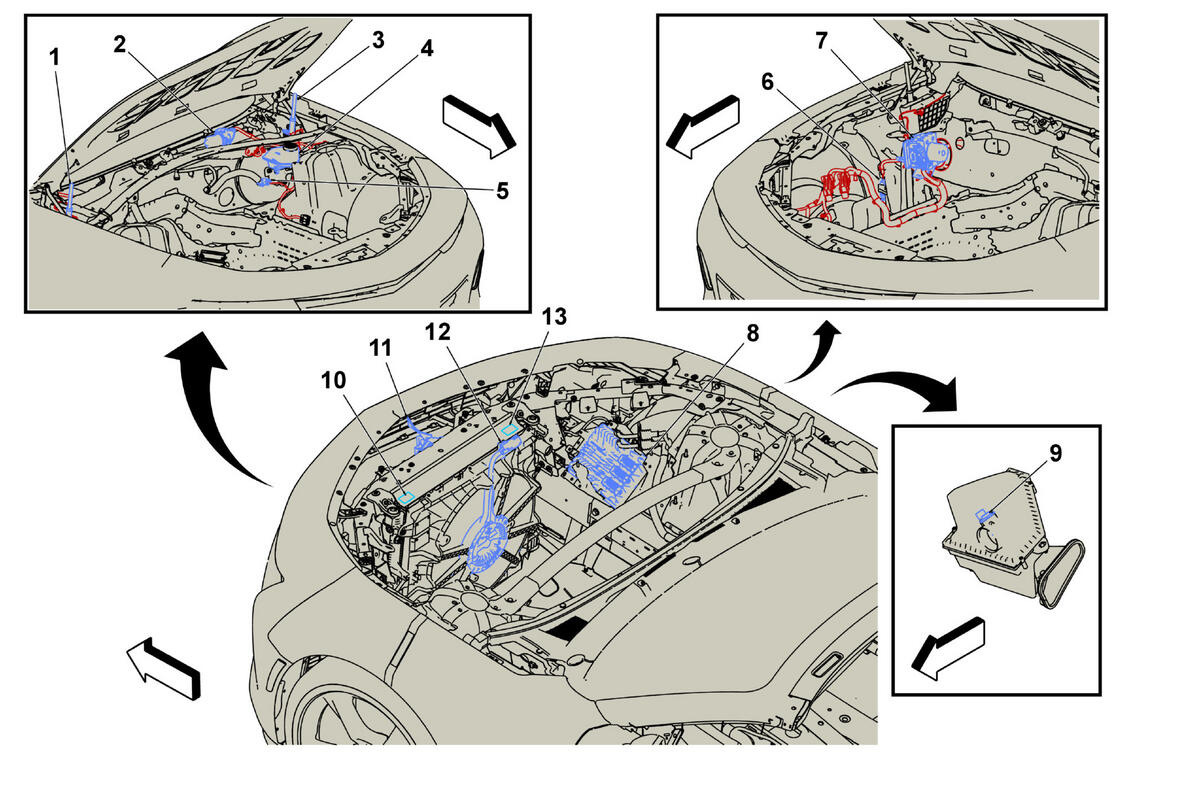

Engine Compartment Components
 Courtesy of GENERAL MOTORS COMPANY
|
Engine Compartment Components
| Component Name |
Callout |
| F100R Hood Hinge Actuator - Right (B3T) F100R Hood Hinge Actuator - Right (B3T) |
1 |
| M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
2 |
| F100L Hood Hinge Actuator - Left (B3T) F100L Hood Hinge Actuator - Left (B3T) |
3 |
| B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
4 |
| B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor (LT1/LT4) |
5 |
| G24 Windshield Washer Pump G24 Windshield Washer Pump |
6 |
| K17 Electronic Brake Control Module K17 Electronic Brake Control Module (LT1/LT4)
, or K17 Electronic Brake Control Module (LTG/LGX) |
7 |
| K20 Engine Control Module K20 Engine Control Module X1 (LGX)
, or K20 Engine Control Module X1 (LT1/LT4)
, or K20 Engine Control Module X1 (LTG)
, or K20 Engine Control Module X2 (LGX)
, or K20 Engine Control Module X2 (LT1/LT4)
, or K20 Engine Control Module X2 (LTG)
, or K20 Engine Control Module X3 (LGX)
, or K20 Engine Control Module X3 (LT1/LT4)
, or K20 Engine Control Module X3 (LTG) |
8 |
| B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
9 |
| B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
10 |
| B55 Engine Hood Switch B55 Engine Hood Switch |
11 |
| G10 Cooling Fan Motor G10 Cooling Fan Motor (LT1/LT4)
, or G10 Cooling Fan Motor (LTG/(LGX+Y4Q)) |
12 |
| B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
13 |
