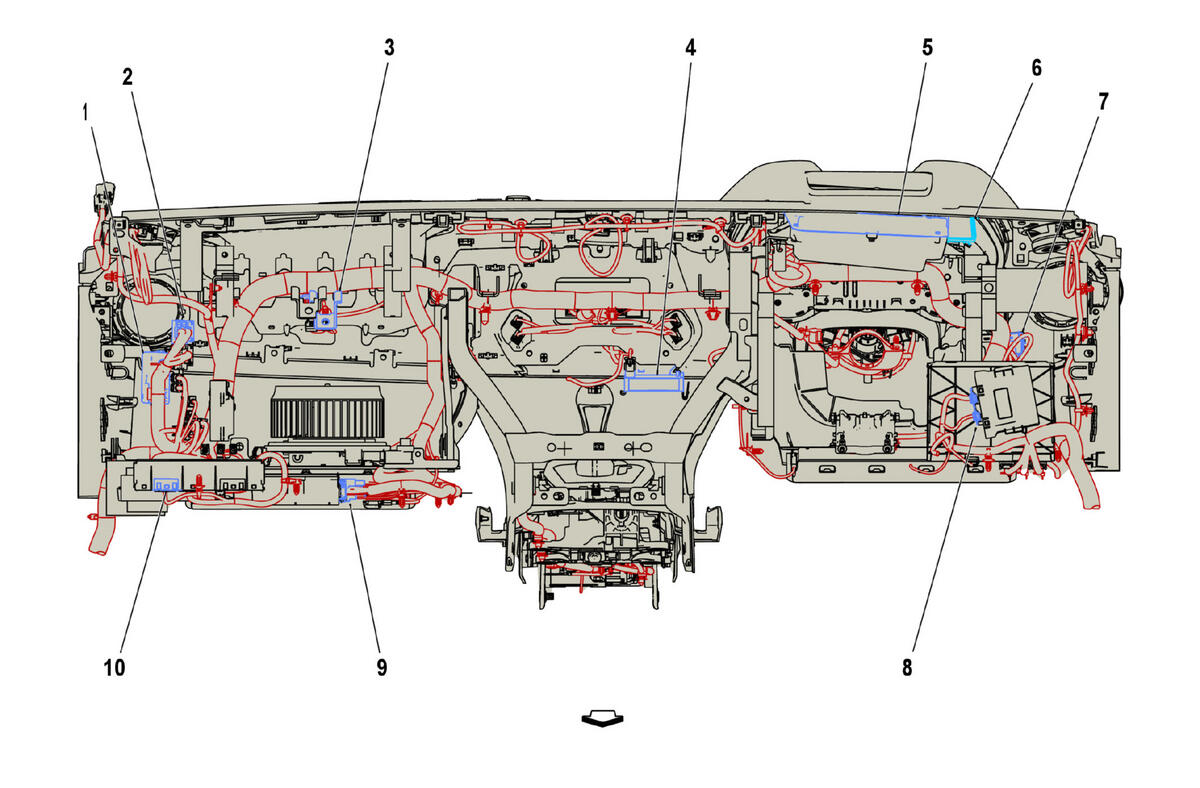

Instrument Panel Components - Rear

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
K126 Accent Lamp Control Module (C70) K126 Accent Lamp Control Module	1
A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOT) , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOT) , or A11 Radio X3 (IOR) , or A11 Radio X3 (IOS/IOT) , or A11 Radio X4 (IOR) , or A11 Radio X4 (IOS/IOT) , or A11 Radio X5 (IOR) , or A11 Radio X5 (IOS/IOT) , or A11 Radio X6 (IOR) , or A11 Radio X6 (IOS/IOT) , or A11 Radio X7 (IOR) , or A11 Radio X7 (IOS/IOT) , or A11 Radio X8 (IOS/IOT) , or A11 Radio X9 (IOS/IOT) , or A11 Radio X10 , or A11 Radio X11 (IOS/IOT)	2
F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2	3
T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front	4
P29 Head-Up Display (UV6) P29 Head-Up Display X1 , or P29 Head-Up Display X2	5
P17 Info Display Module P17 Info Display Module X1 (IOR) , or P17 Info Display Module X1 (IOS/IOT) , or P17 Info Display Module X2 (IOR) , or P17 Info Display Module X2 (-UQT) , or P17 Info Display Module X2 (UQT) , or P17 Info Display Module X4 , or P17 Info Display Module X5 , or P17 Info Display Module X6 , or P17 Info Display Module X7	6
S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch	7
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2	8
K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 , or K73 Telematics Communication Interface Control Module X2 , or K73 Telematics Communication Interface Control Module X3	9
K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4	10
