Driver Seat Components

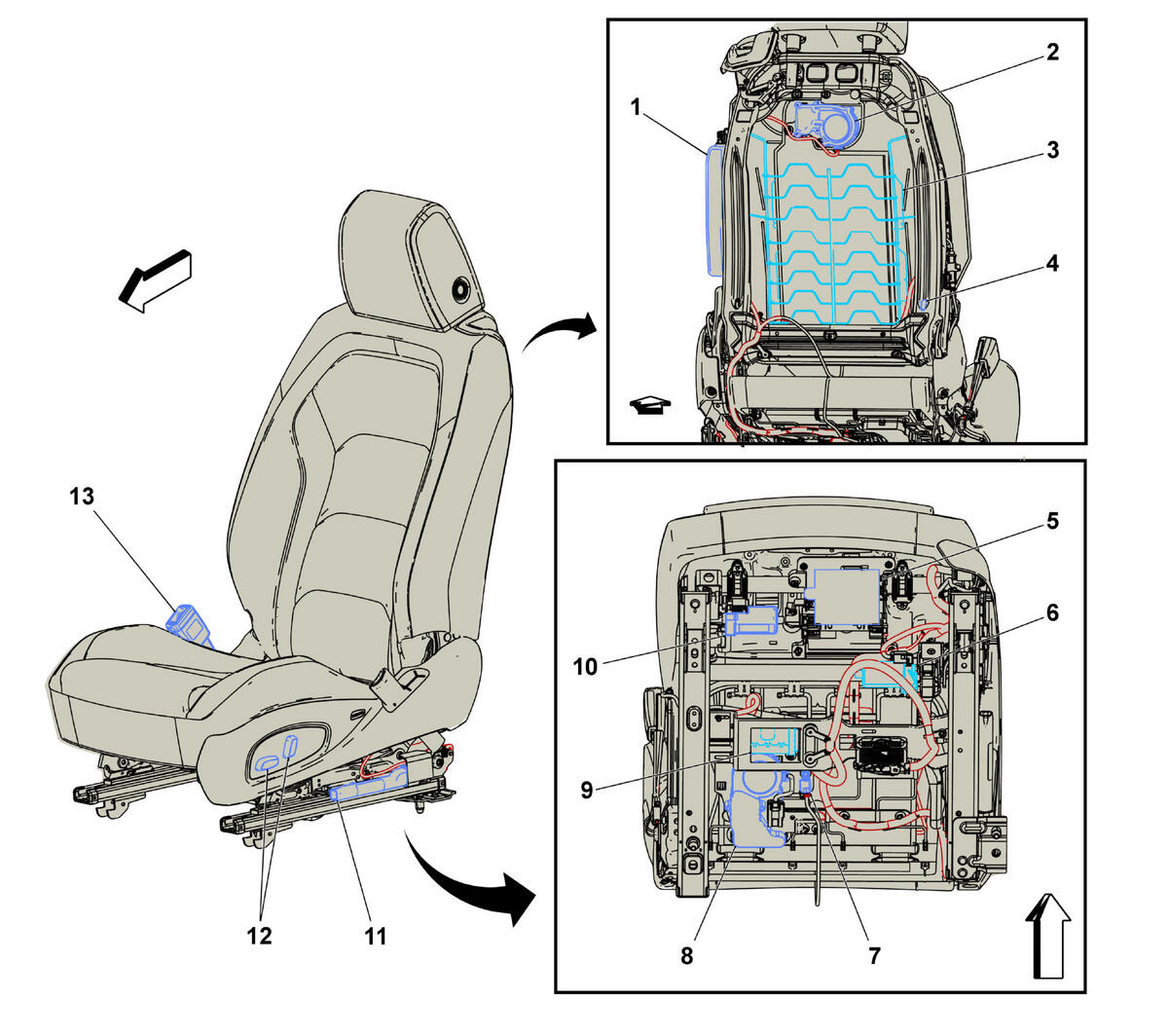

GM4910920Courtesy of GENERAL MOTORS COMPANY
Driver Seat Components

Component Name Callout
F106LF Seat Side Air Bag - Left Front F106LF Seat Side Air Bag - Left Front 1
M73A Seat Blower Motor - Driver Back (KQV) M73A Seat Blower Motor - Driver Back 2
E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back 3
M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver 4
K40D Seat Memory Control Module - Driver (A45) K40D Seat Memory Control Module - Driver X1 , or K40D Seat Memory Control Module - Driver X2 , or K40D Seat Memory Control Module - Driver X3 , or K40D Seat Memory Control Module - Driver X5 , or K40D Seat Memory Control Module - Driver X6 5
M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver 6
E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion 7
M73C Seat Blower Motor - Driver Cushion (KQV) M73C Seat Blower Motor - Driver Cushion 8
M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver 9
M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver 10
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver 11
S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver 12
B153D Seat Belt Buckle - Driver 13
