Headliner Components (Convertible)

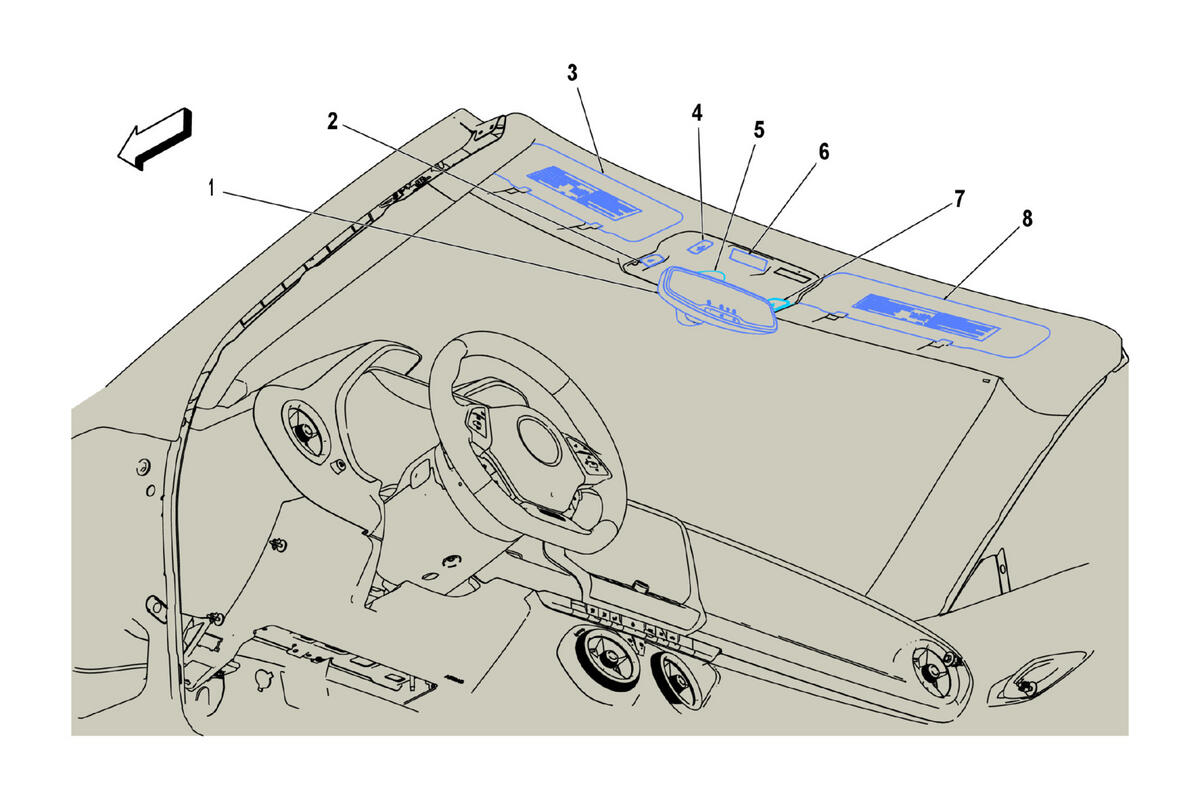

GM4910928Courtesy of GENERAL MOTORS COMPANY
Headliner Components (Convertible)

Component Name Callout
A10 Inside Rearview Mirror A10 Inside Rearview Mirror (DD8) , or A10 Inside Rearview Mirror (UE1) , or A10 Inside Rearview Mirror X1 (DRZ) , or A10 Inside Rearview Mirror X1 (UE1) , or A10 Inside Rearview Mirror X2 (DRZ) 1
E37LF Dome/Reading Lamps - Left Front E37LF Dome/Reading Lamps - Left Front 2
A3L Sunshade - Left A3L Sunshade - Left 3
S22B Folding Top Control Switch (CM8) S22B Folding Top Control Switch 4
E38 Flood Lamp - Center Console E38 Flood Lamp - Center Console 5
P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator 6
E37RF Dome/Reading Lamps - Right Front E37RF Dome/Reading Lamps - Right Front 7
A3R Sunshade - Right A3R Sunshade - Right 8
