Automatic Transmission Case Components (M5T)

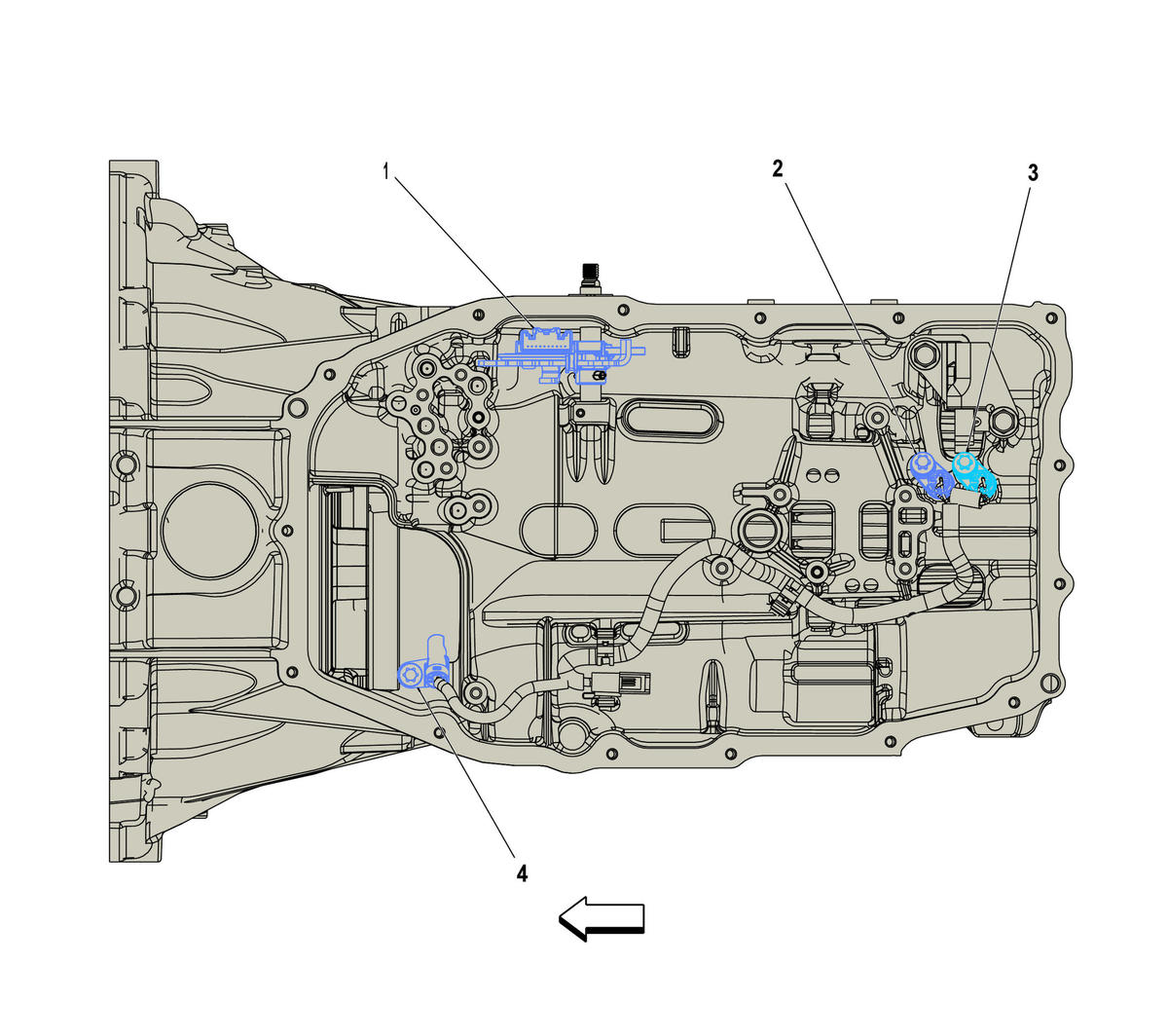

GM4910885Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components (M5T)

Component Name Callout
B15 Transmission Internal Mode Switch (M5T) B15 Transmission Internal Mode Switch 1
B14D Transmission Intermediate Shaft Speed Sensor (M5T) 2
B14A Transmission Output Shaft Speed Sensor 3
B14C Transmission Input Shaft Speed Sensor (MF6/MGL/M5T) 4
