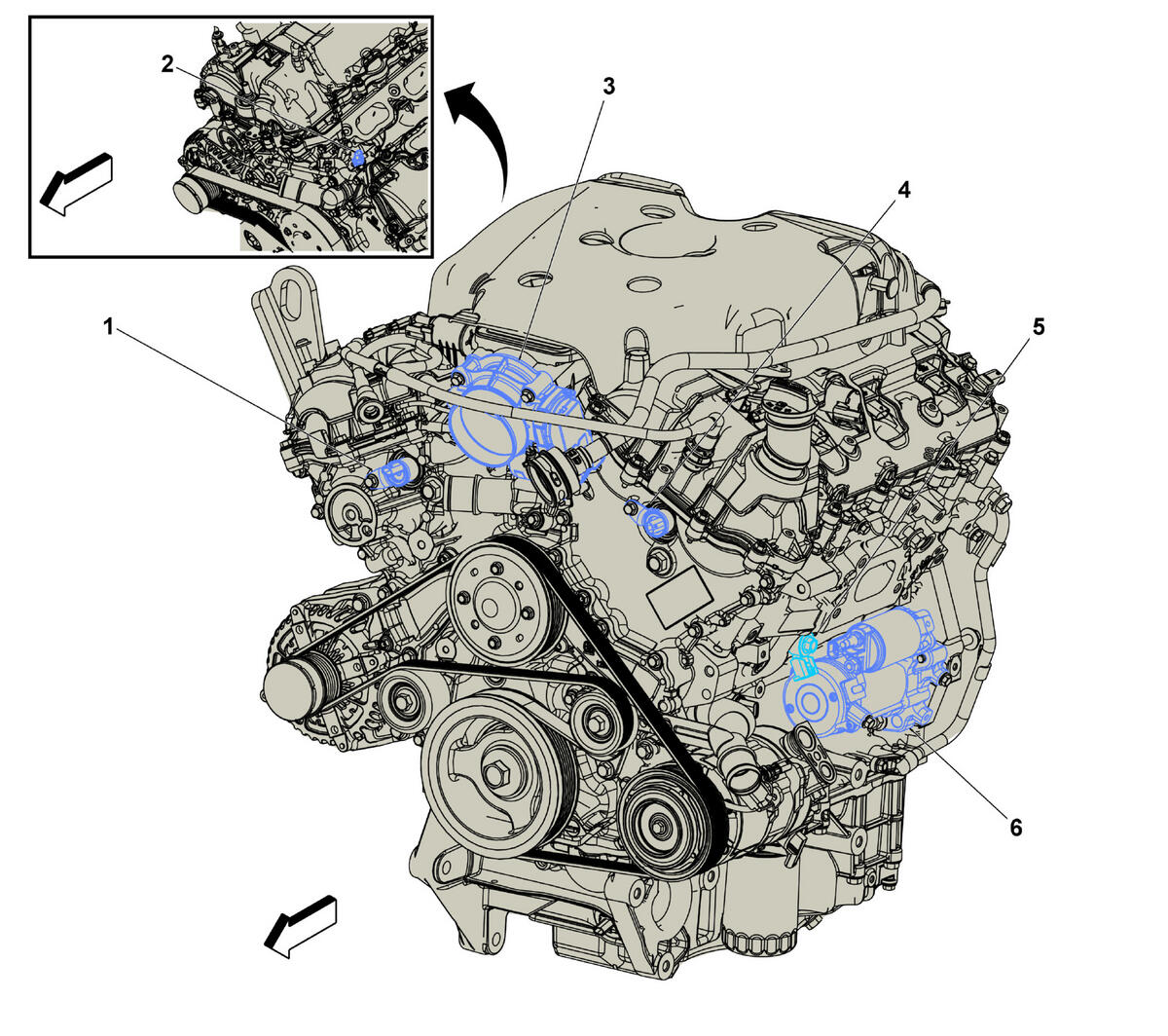

Engine Components - Front (LGX)
Engine Components - Front (LGX)
| Component Name | Callout |
|---|---|
| Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) | 1 |
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LGX) | 2 |
| Q38 Throttle Body Q38 Throttle Body | 3 |
| Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) | 4 |
| B68B Knock Sensor 2 B68B Knock Sensor 2 | 5 |
| M64 Starter Motor M64 Starter Motor X1 (LGX) , or M64 Starter Motor X2 (LGX) | 6 |
