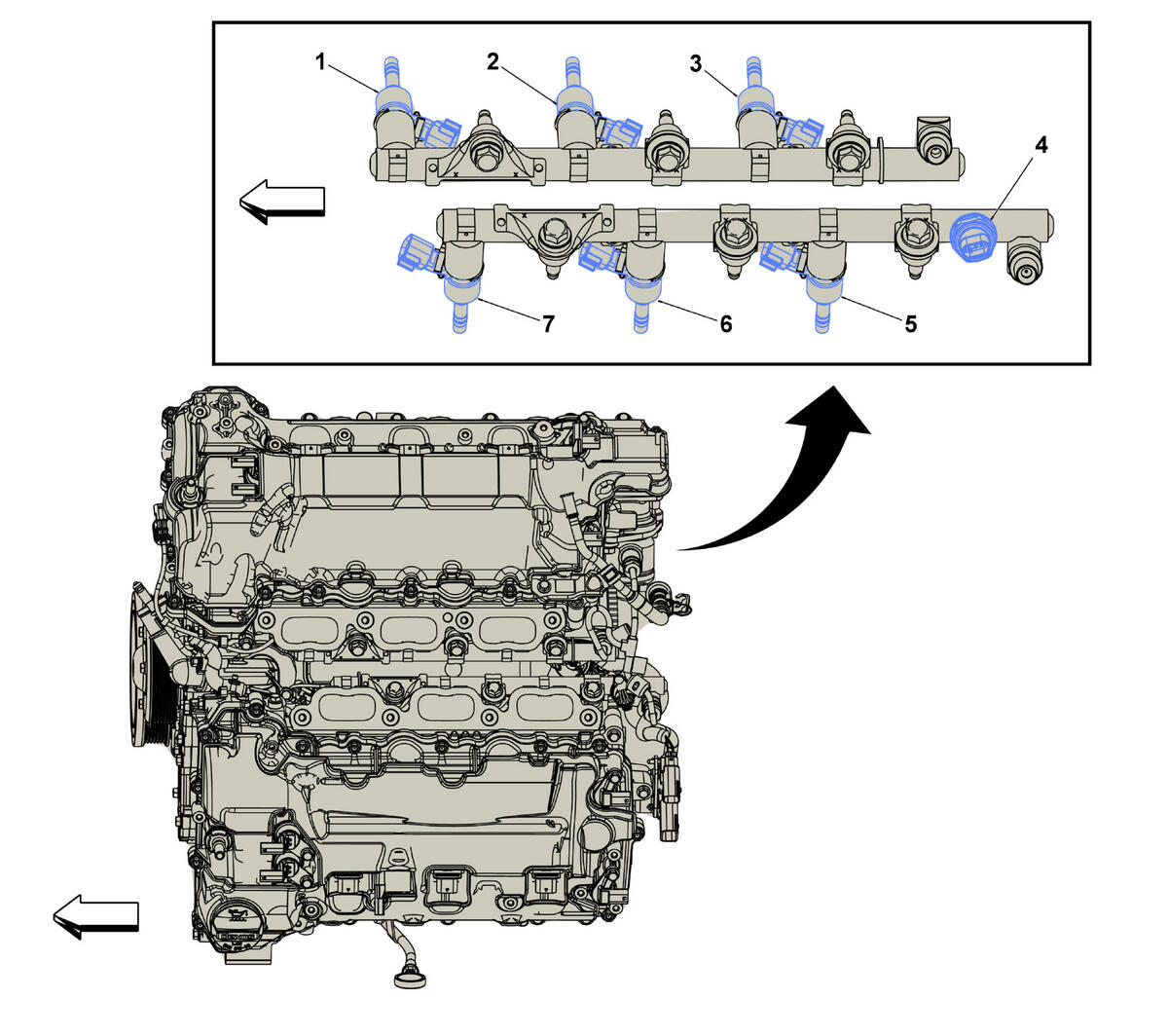

Engine Components - Fuel Rail Components (LGX)
Engine Components - Fuel Rail Components (LGX)
| Component Name | Callout |
|---|---|
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LGX) | 1 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LGX) | 2 |
| Q17E Fuel Injector 5 (LGX/LT1/LT4) Q17E Fuel Injector 5 (LGX) | 3 |
| B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (-LTG) | 4 |
| Q17F Fuel Injector 6 (LGX/LT1/LT4) Q17F Fuel Injector 6 (LGX) | 5 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LGX) | 6 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LGX) | 7 |
