Manual Transmission Components (M13)

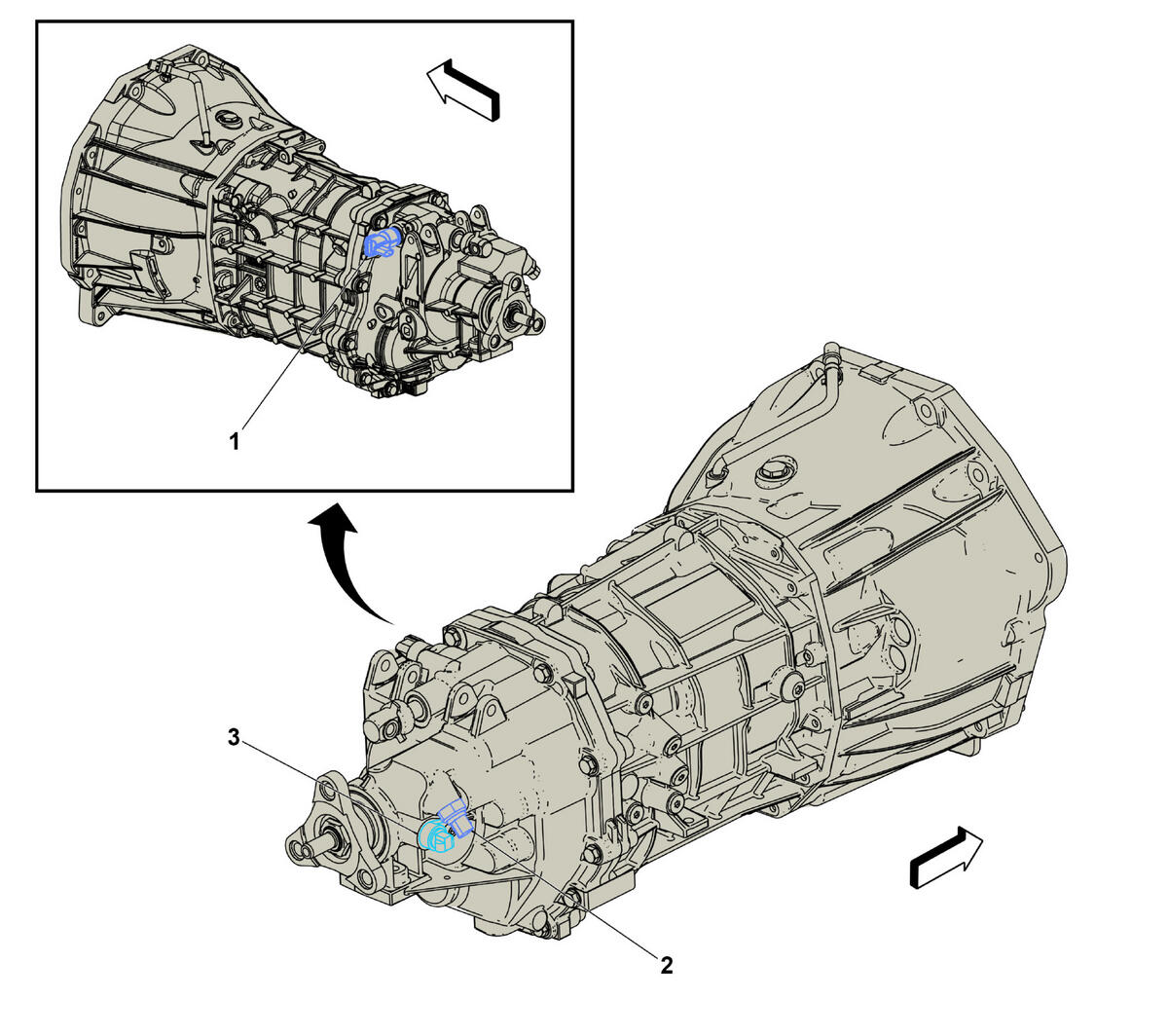

GM4910876Courtesy of GENERAL MOTORS COMPANY
Manual Transmission Components (M13)

Component Name Callout
B227 Gear Position Sensor B227 Gear Position Sensor 1
B16 Backup Lamp Switch (M13) B16 Backup Lamp Switch 2
B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MN6/M13) 3
