Manual Transmission Components (MM6)

GM4910880Courtesy of GENERAL MOTORS COMPANY

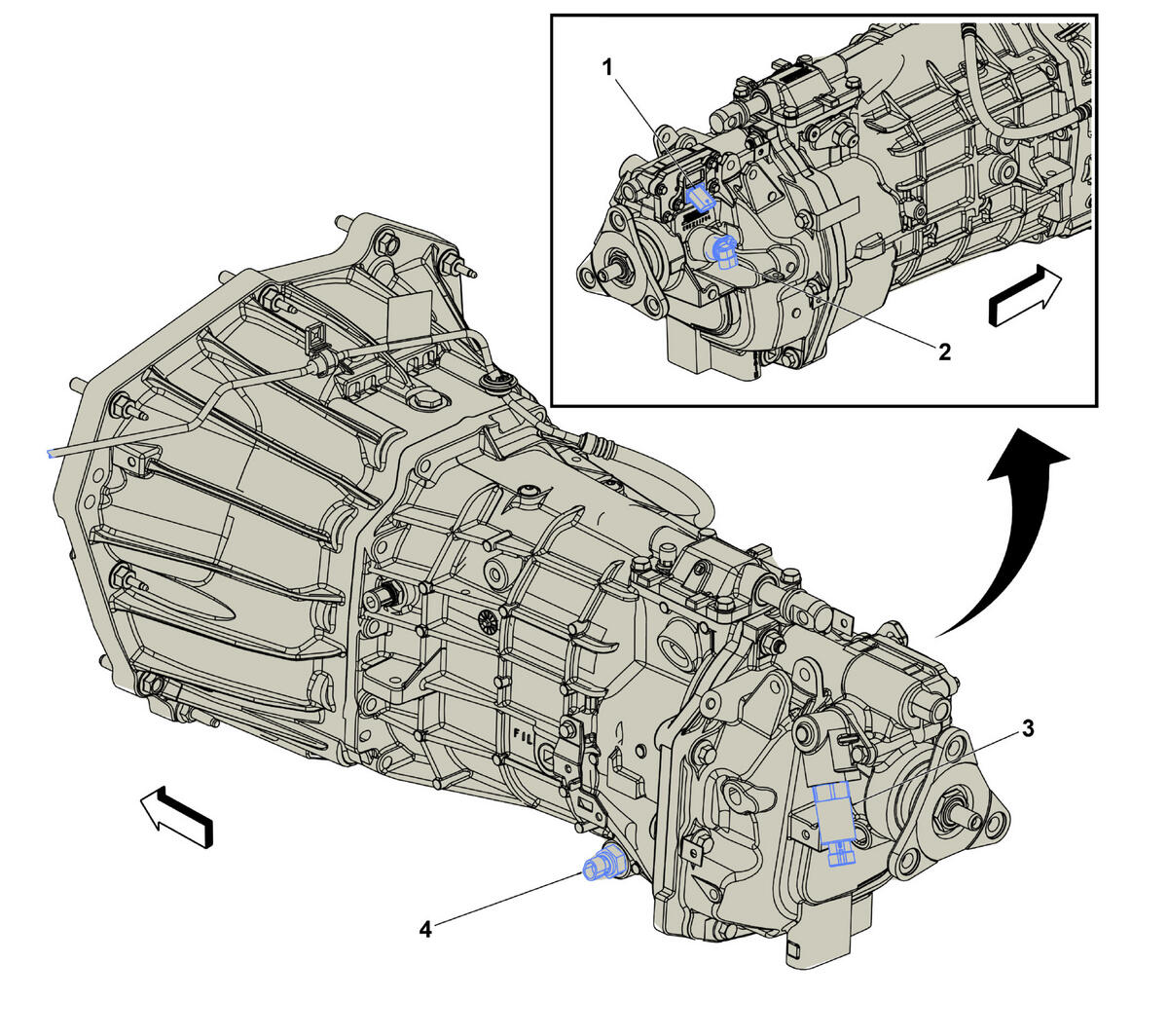

Manual Transmission Components (MM6)

Component Name Callout
B227 Gear Position Sensor B227 Gear Position Sensor 1
B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MN6/M13) 2
M47 Reverse Inhibit Solenoid Actuator (MM6) M47 Reverse Inhibit Solenoid Actuator 3
B173 Manual Transmission Fluid Temperature Sensor B173 Manual Transmission Fluid Temperature Sensor 4
