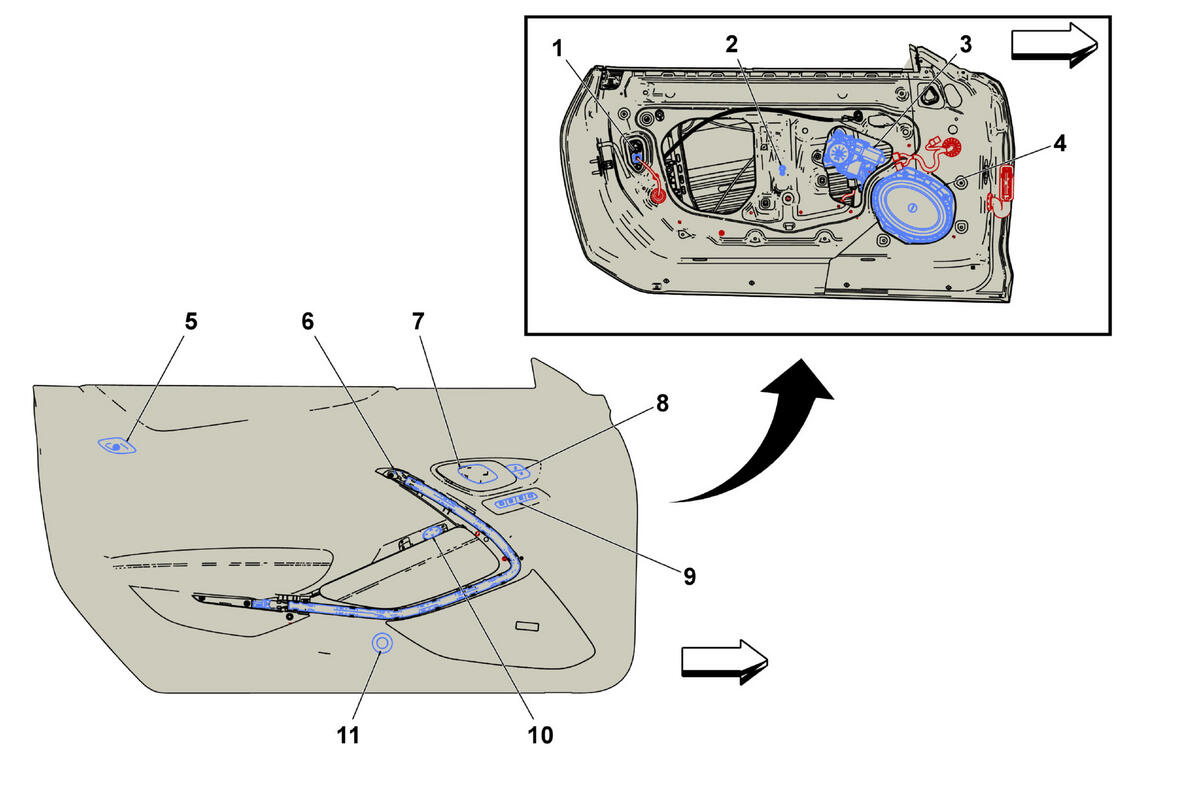

Driver Door Trim Components
Driver Door Trim Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 1 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 2 |
| M74D Window Motor - Driver M74D Window Motor - Driver | 3 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door | 4 |
| B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC) B77LF Radio Volume Compensator Interior Noise Microphone - Left Front | 5 |
| E1D Accent Lamp - Driver Door (C70) E1D Accent Lamp - Driver Door X2 | 6 |
| E63D Flood Lamp - Driver Door Handle E63D Flood Lamp - Driver Door Handle | 7 |
| S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver | 8 |
| S47D Seat Memory Switch - Driver (A45) S47D Seat Memory Switch - Driver | 9 |
| S79D Window Switch - Driver S79D Window Switch - Driver | 10 |
| S58B Rear Compartment Lid Unlatch Switch - Interior S58B Rear Compartment Lid Unlatch Switch - Interior | 11 |
