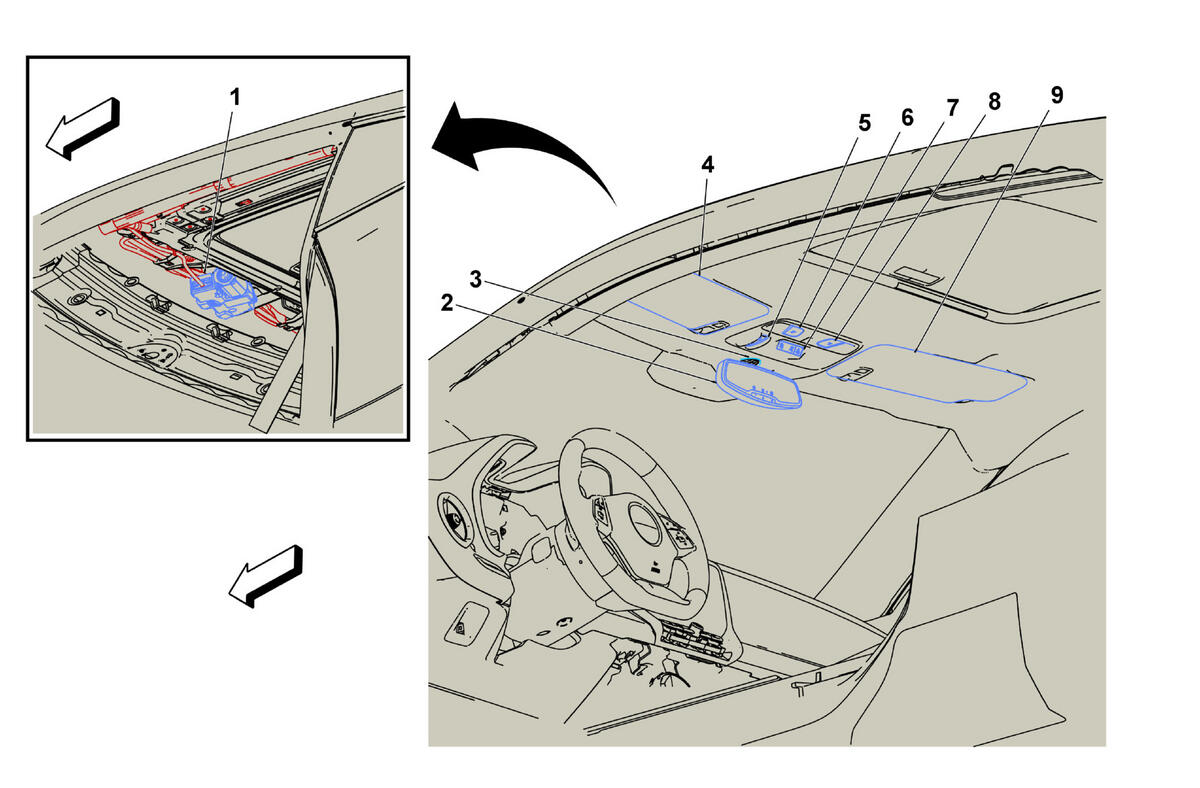

Headliner Components (Coupe)
Headliner Components (Coupe)
| Component Name | Callout |
|---|---|
| M69 Sunroof Motor (CE5) M69 Sunroof Motor | 1 |
| A10 Inside Rearview Mirror A10 Inside Rearview Mirror (DD8) , or A10 Inside Rearview Mirror (UE1) , or A10 Inside Rearview Mirror X1 (DRZ) , or A10 Inside Rearview Mirror X1 (UE1) , or A10 Inside Rearview Mirror X2 (DRZ) | 2 |
| E38 Flood Lamp - Center Console E38 Flood Lamp - Center Console | 3 |
| A3L Sunshade - Left A3L Sunshade - Left | 4 |
| S72 Sunroof Switch (CE5) S72 Sunroof Switch | 5 |
| E37LF Dome/Reading Lamps - Left Front E37LF Dome/Reading Lamps - Left Front | 6 |
| P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator | 7 |
| E37RF Dome/Reading Lamps - Right Front E37RF Dome/Reading Lamps - Right Front | 8 |
| A3R Sunshade - Right A3R Sunshade - Right | 9 |
