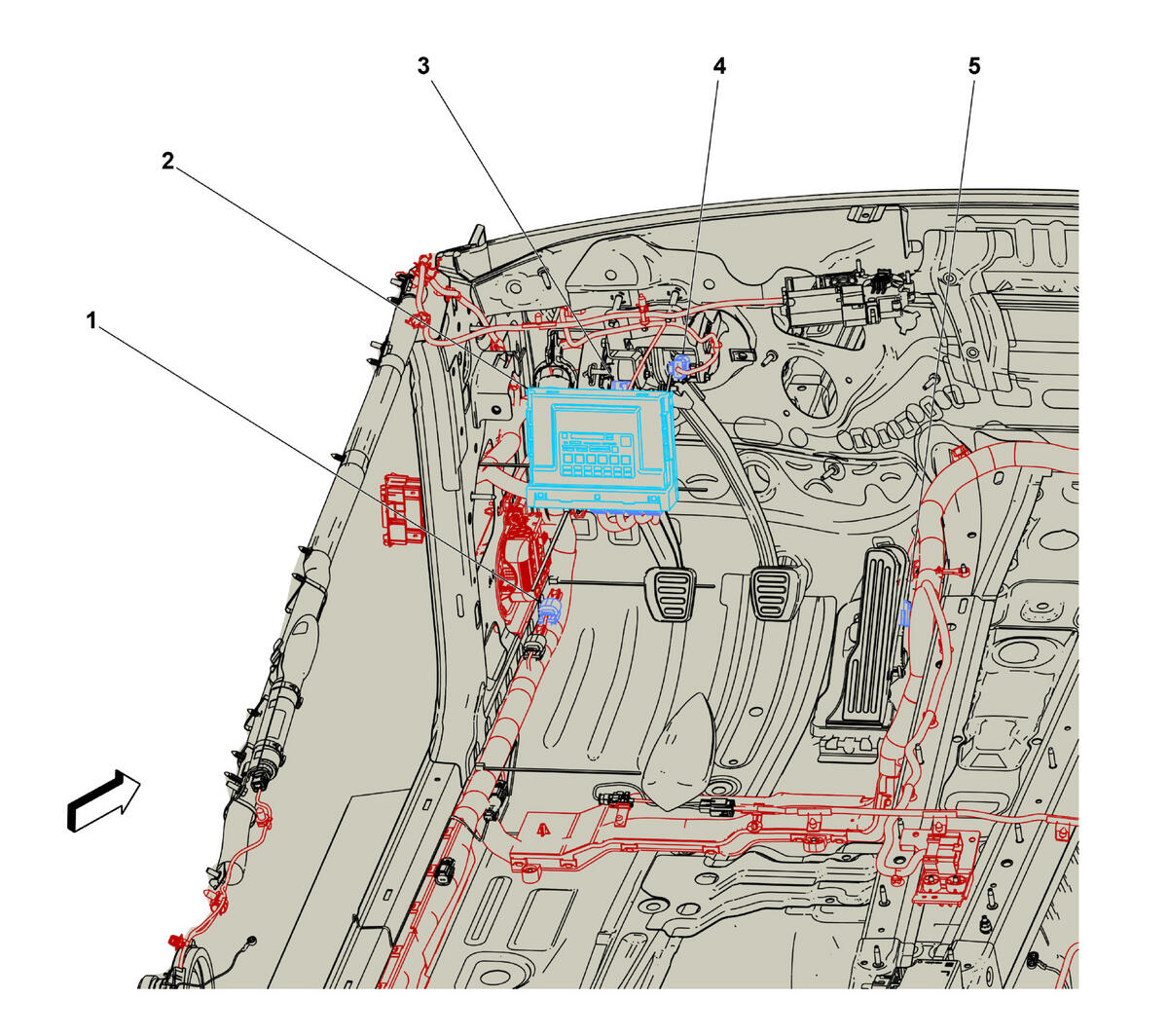

Passenger Compartment Components - Left Front

GM4910919Courtesy of GENERAL MOTORS COMPANY
Passenger Compartment Components - Left Front

Component Name Callout
R6C Terminating Resistor 1 - High Speed Bus R6C Terminating Resistor 1 - High Speed Bus 1
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 2
B25B Clutch Pedal Position Sensor (MN6) B25B Clutch Pedal Position Sensor 3
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor 4
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 5
