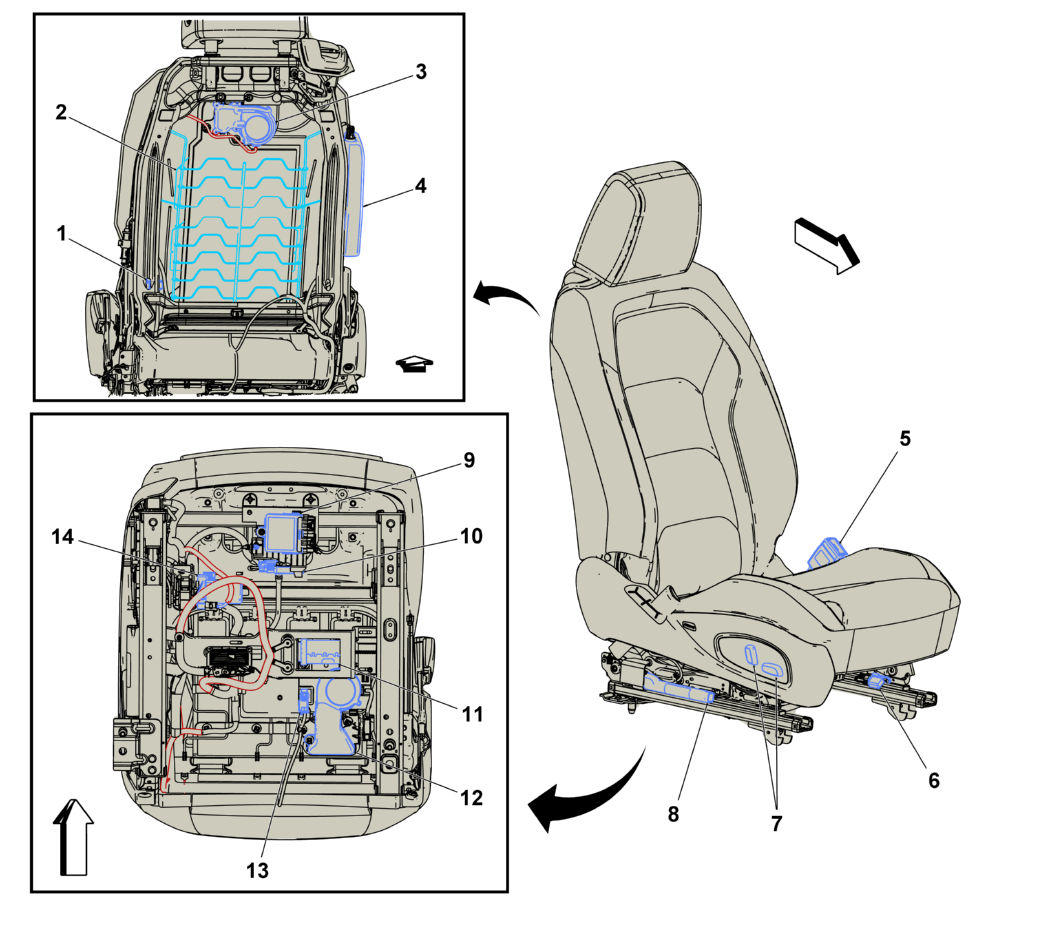

Passenger Seat Components
Passenger Seat Components
| Component Name | Callout |
|---|---|
| M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger | 1 |
| E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back | 2 |
| M73B Seat Blower Motor - Passenger Back (KQV) M73B Seat Blower Motor - Passenger Back | 3 |
| F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front | 4 |
| B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger | 5 |
| B62P Seat Position Sensor - Passenger B62P Seat Position Sensor - Passenger | 6 |
| S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger | 7 |
| F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger | 8 |
| K29F Seat Heating Control Module - Front (KA1/KQV) K29F Seat Heating Control Module - Front X1 , or K29F Seat Heating Control Module - Front X2 | 9 |
| K85 Passenger Presence Module K85 Passenger Presence Module | 10 |
| M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger | 11 |
| M73D Seat Blower Motor - Passenger Cushion (KQV) | 12 |
| E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion | 13 |
| M57P Seat Vertical Motor - Passenger | 14 |
