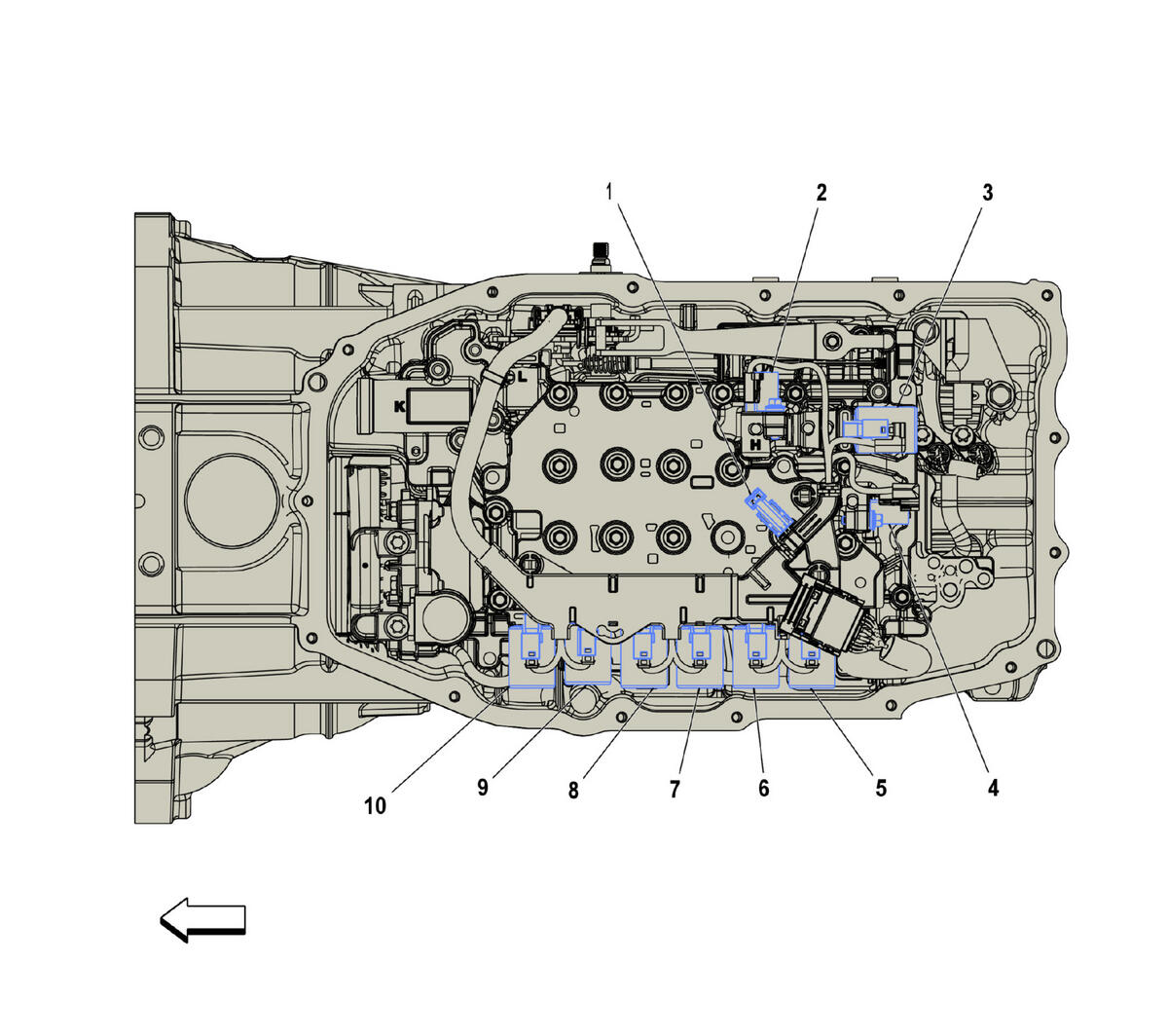

Automatic Transmission Valve Body Components (M5T)
Automatic Transmission Valve Body Components (M5T)
| Component Name | Callout |
|---|---|
| B13 Transmission Fluid Temperature Sensor (MF6/MGL/M5T) | 1 |
| Q77H Transmission Control Solenoid Valve 8 Q77H Transmission Control Solenoid Valve 8 (M5T) | 2 |
| Q77F Transmission Control Solenoid Valve 6 Q77F Transmission Control Solenoid Valve 6 (M5T) | 3 |
| Q77J Transmission Control Solenoid Valve 9 Q77J Transmission Control Solenoid Valve 9 (M5T) | 4 |
| Q77B Transmission Control Solenoid Valve 2 Q77B Transmission Control Solenoid Valve 2 (M5T) | 5 |
| Q77A Transmission Control Solenoid Valve 1 Q77A Transmission Control Solenoid Valve 1 (M5T) | 6 |
| Q77E Transmission Control Solenoid Valve 5 Q77E Transmission Control Solenoid Valve 5 (M5T) | 7 |
| Q77C Transmission Control Solenoid Valve 3 Q77C Transmission Control Solenoid Valve 3 (M5T) | 8 |
| Q77D Transmission Control Solenoid Valve 4 Q77D Transmission Control Solenoid Valve 4 (M5T) | 9 |
| Q77G Transmission Control Solenoid Valve 7 Q77G Transmission Control Solenoid Valve 7 (M5T) | 10 |
