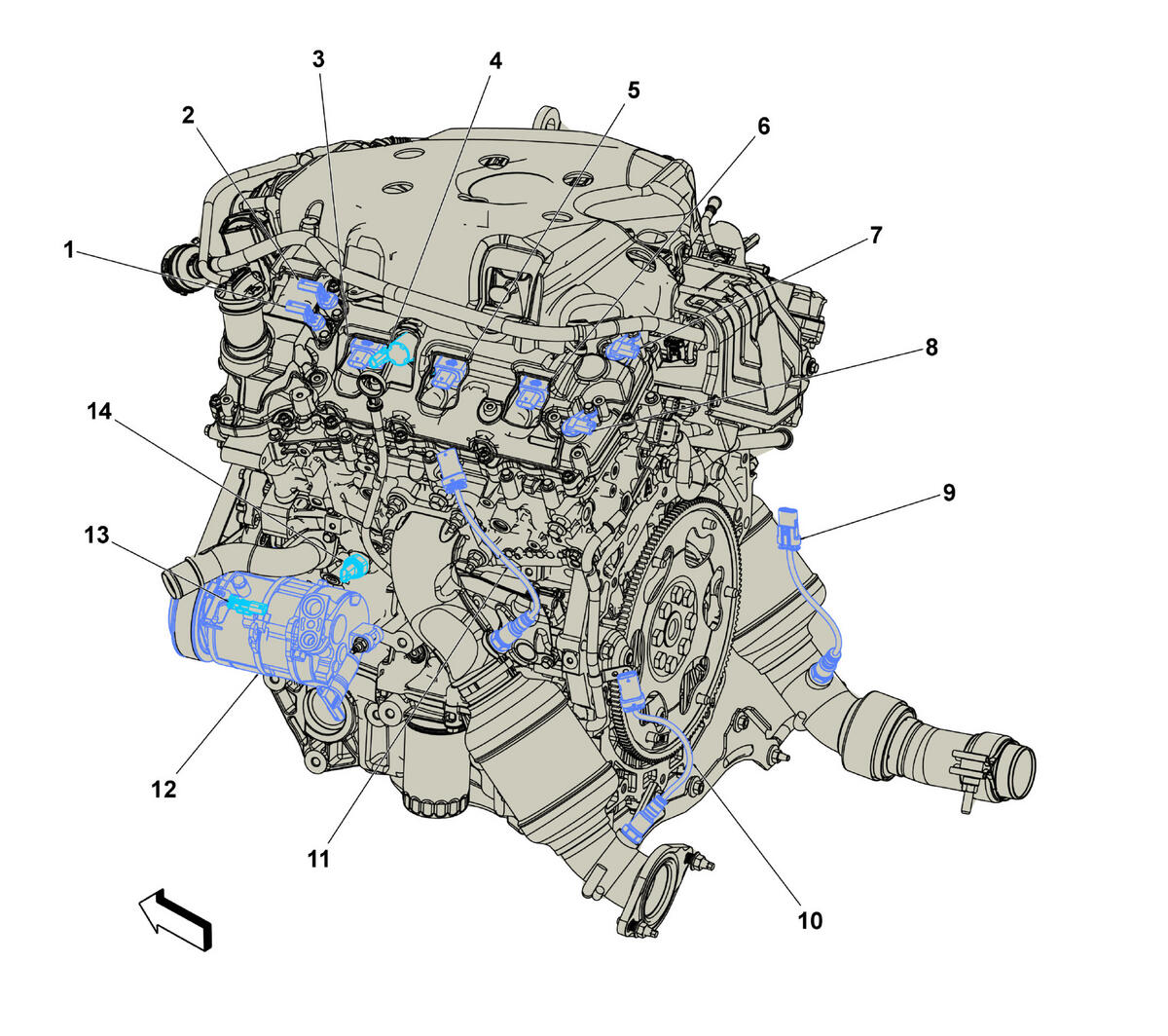

Engine Components - Left Rear (LGX)
Engine Components - Left Rear (LGX)
| Component Name | Callout |
|---|---|
| Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust | 1 |
| Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake | 2 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (LGX) | 3 |
| Q83B Valve Lifter Oil Solenoid Valve - Bank 2 Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGX) | 4 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (LGX) | 5 |
| T8F Ignition Coil 6 (LGX/LT1/LT4) T8F Ignition Coil 6 (LGX) | 6 |
| B23D Camshaft Position Sensor - Bank 2 Intake (LGX) B23D Camshaft Position Sensor - Bank 2 Intake (LGX) | 7 |
| B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX) | 8 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX/LT1/LT4) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX) | 9 |
| B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX/LT1/LT4) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX) | 10 |
| B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX/LT1/LT4) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX) | 11 |
| Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve | 12 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 13 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LGX) | 14 |
