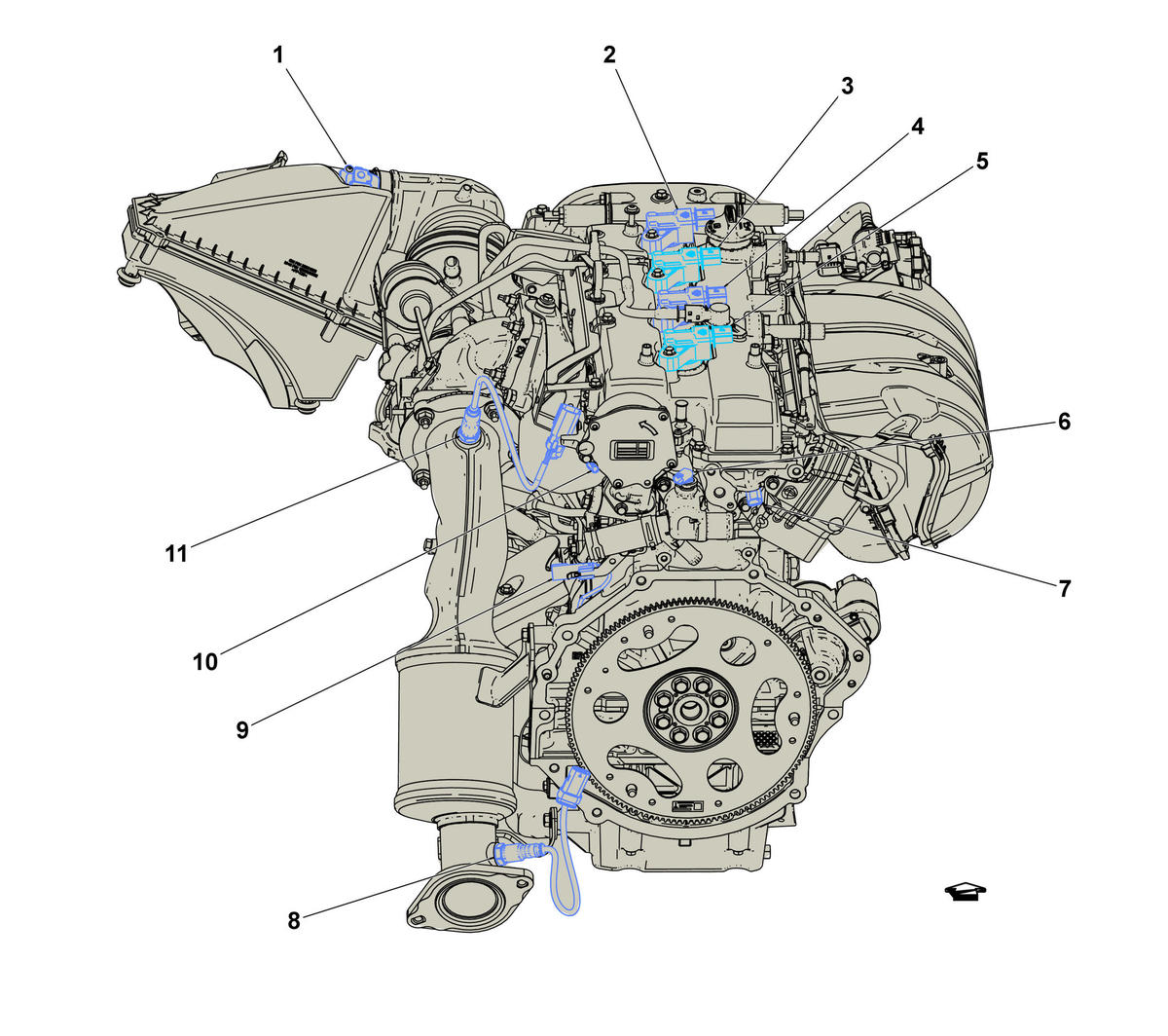

Engine Components - Rear (LTG)
Engine Components - Rear (LTG)
| Component Name | Callout |
|---|---|
| B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor | 1 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LTG) | 2 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (LTG) | 3 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LTG) | 4 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (LTG) | 5 |
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LTG) | 6 |
| B23F Camshaft Position Sensor - Intake (LTG) B23F Camshaft Position Sensor - Intake (LTG) | 7 |
| B52B Heated Oxygen Sensor 2 (LTG) B52B Heated Oxygen Sensor 2 | 8 |
| Q44 Engine Oil Pressure Control Solenoid Valve | 9 |
| B23E Camshaft Position Sensor - Exhaust (LTG) B23E Camshaft Position Sensor - Exhaust (LTG) | 10 |
| B52A Heated Oxygen Sensor 1 (LTG) B52A Heated Oxygen Sensor 1 | 11 |
