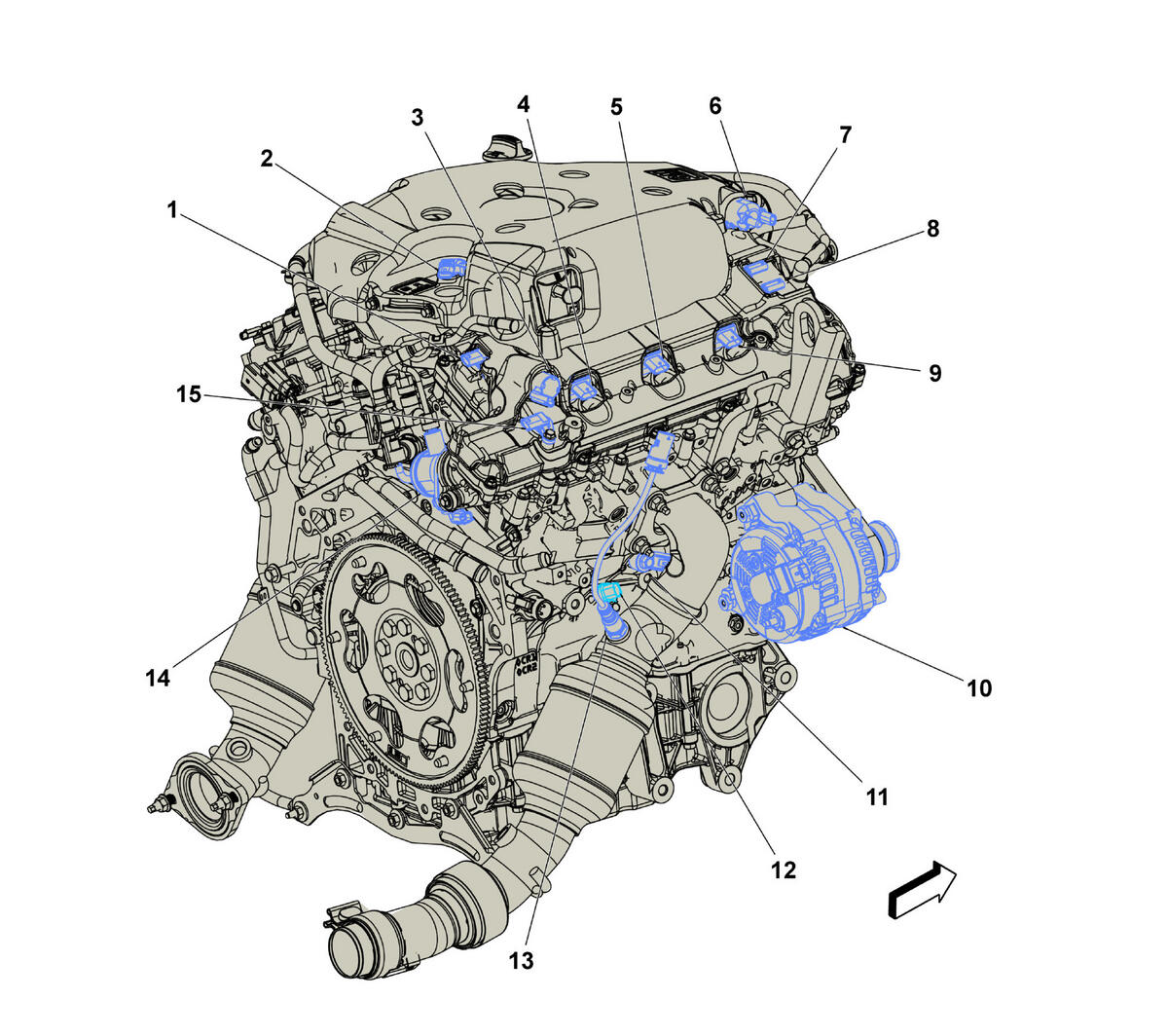

Engine Components - Right Rear (LGX)
Engine Components - Right Rear (LGX)
| Component Name | Callout |
|---|---|
| B23B Camshaft Position Sensor - Bank 1 Intake (LGX) B23B Camshaft Position Sensor - Bank 1 Intake (LGX) | 1 |
| B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX) | 2 |
| Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) | 3 |
| T8E Ignition Coil 5 (LGX/LT1/LT4) T8E Ignition Coil 5 (LGX) | 4 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX) | 5 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 6 |
| Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake | 7 |
| Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust | 8 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX) | 9 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (LGX) | 10 |
| B68A Knock Sensor 1 B68A Knock Sensor 1 | 11 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGX) | 12 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX/LT1/LT4) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX) | 13 |
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LTG/LGX) | 14 |
| B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX) | 15 |
