Top of Engine Components (LT1/LT4)
Top of Engine Components (LT1/LT4)

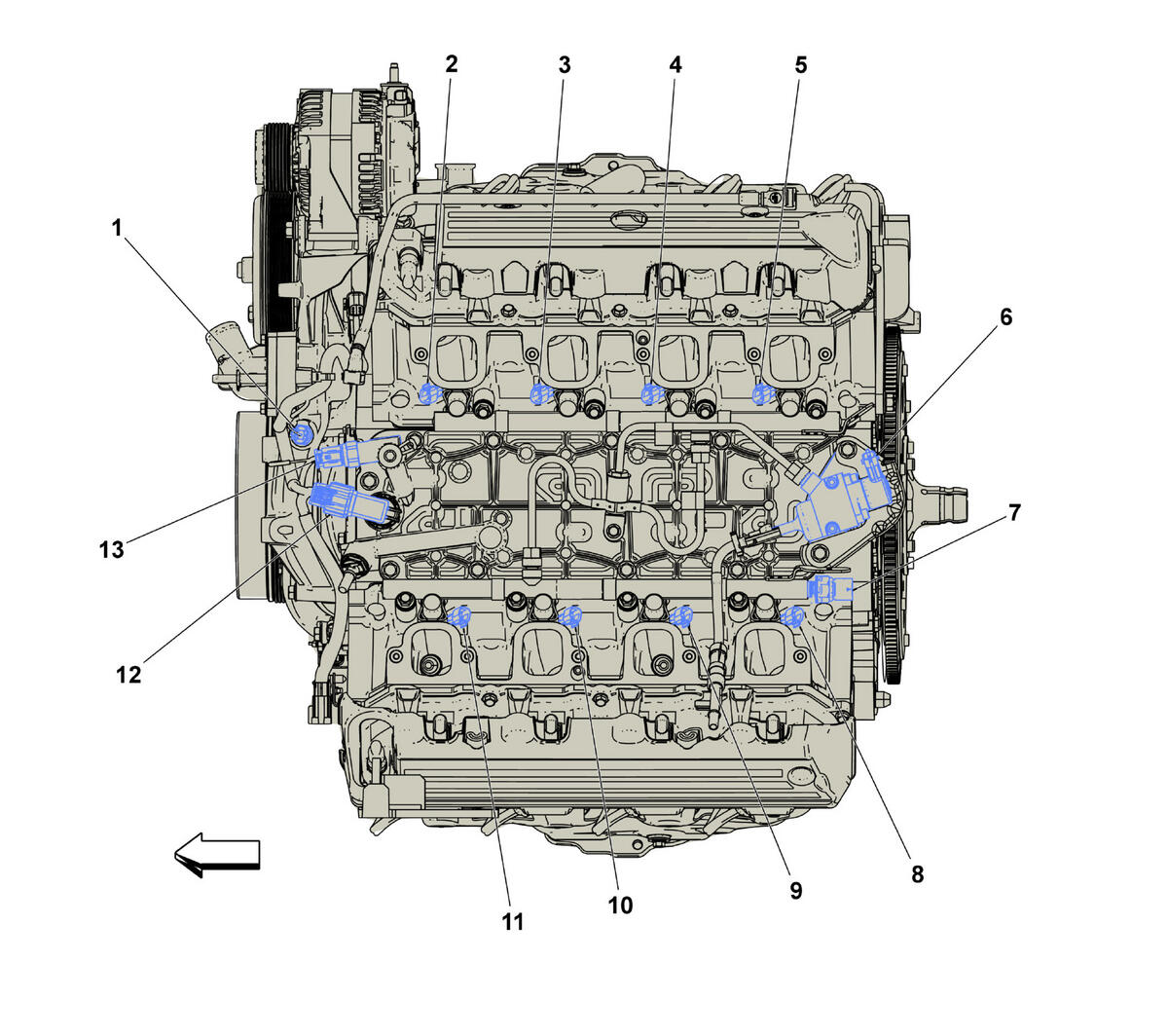

| Component Name | Callout |
|---|---|
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LT1/LT4) | 1 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LT1/LT4) | 2 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LT1/LT4) | 3 |
| Q17F Fuel Injector 6 (LGX/LT1/LT4) Q17F Fuel Injector 6 (LT1/LT4) | 4 |
| Q17H Fuel Injector 8 (LT1/LT4) Q17H Fuel Injector 8 | 5 |
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LT1) | 6 |
| B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (-LTG) | 7 |
| Q17G Fuel Injector 7 (LT1/LT4) Q17G Fuel Injector 7 | 8 |
| Q17E Fuel Injector 5 (LGX/LT1/LT4) Q17E Fuel Injector 5 (LT1/LT4) | 9 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LT1/LT4) | 10 |
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LT1/LT4) | 11 |
| Q43 Valve Lifter Oil Manifold Assembly (LT1) Q43 Valve Lifter Oil Manifold Assembly (LT1) | 12 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LT1/LT4) | 13 |
