Removal Procedure

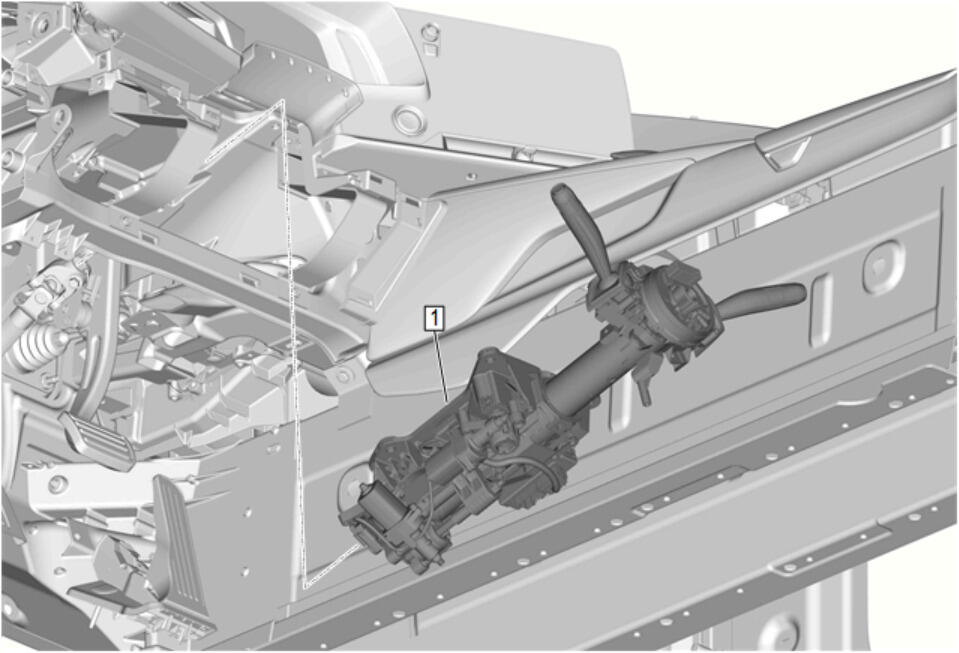

  1. GM5386076Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Remove - Steering Column Replacement

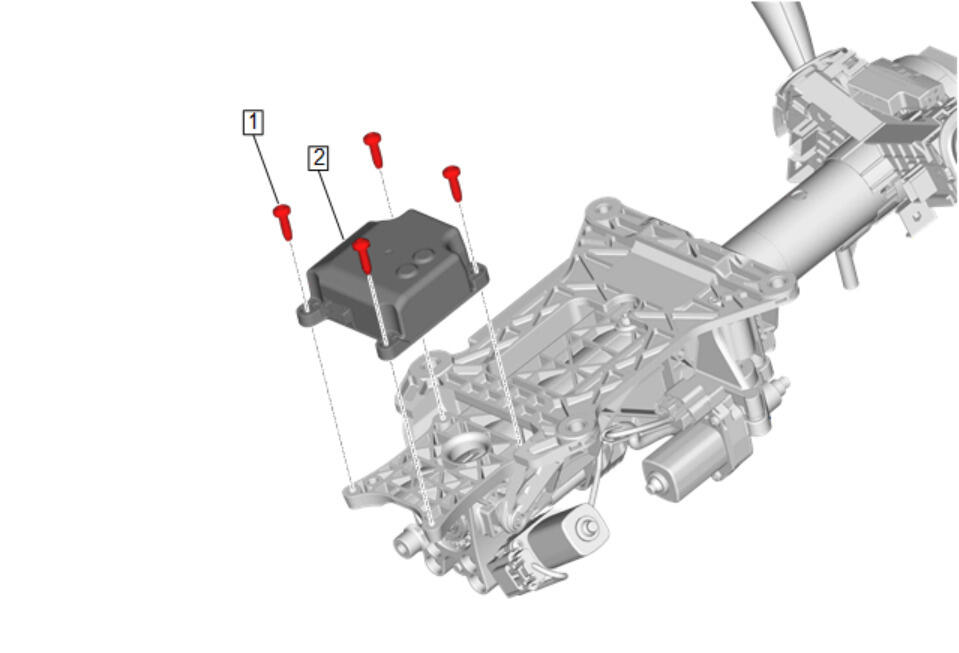

  2. GM5386271Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lock Control Module Bolt (1) - Remove [4x]

  3. Steering Column Lock Control Module (2) - Remove
