Side Obstacle Detection Control Module Replacement

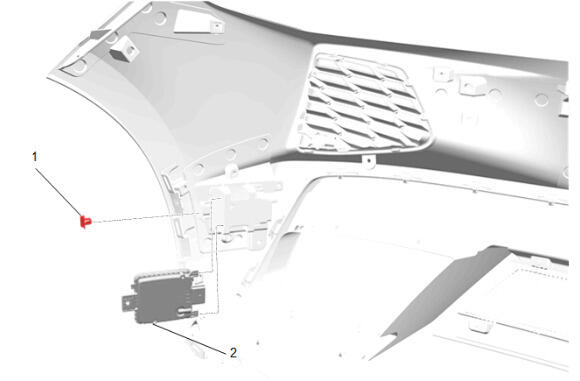

GM5374719Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Side Object Sensing Alert Module Shield Replacement
1 Side Object Sensing Alert Module Clip
2 Side Object Sensing Alert Module

Procedure

  1. Disconnect the electrical connector.
  2. Slide the module out of the retaining bracket.
  3. Perform the necessary programming and setup procedure:Control Module References
