Side Object Sensing Alert Module Shield Replacement

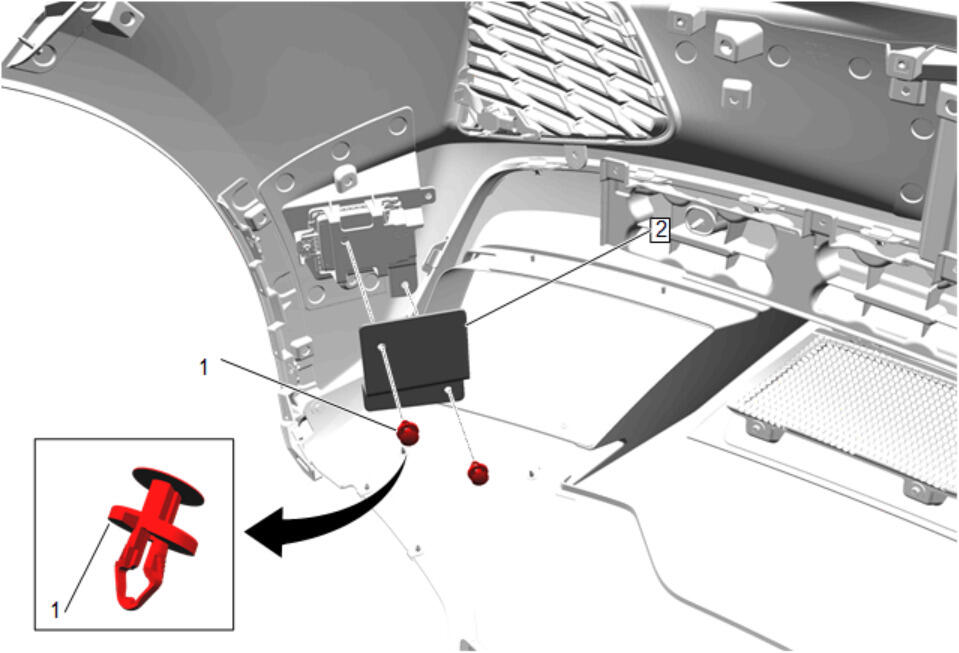

GM5377157Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Removal and Installation
1 Side Object Sensing Alert Module Shield Retainer [2x]
2 Side Object Sensing Alert Module Shield
