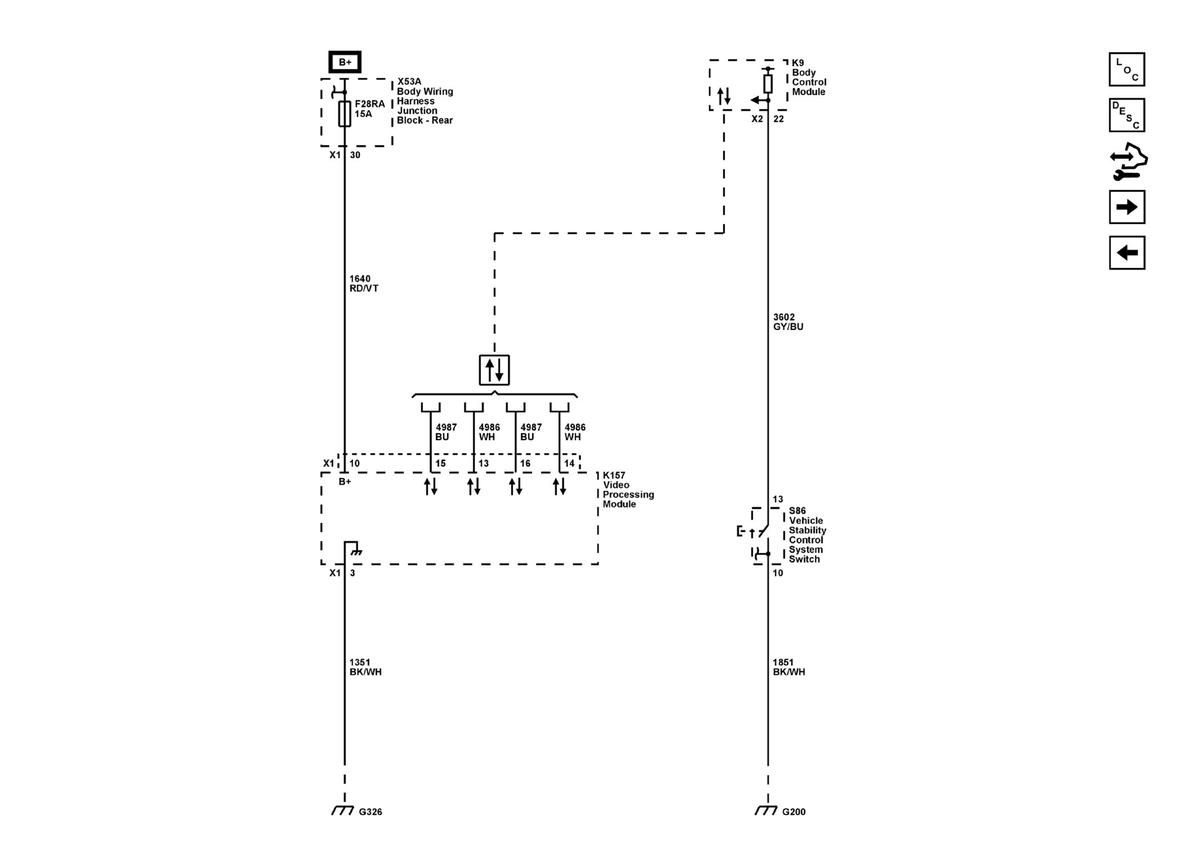

360 Degree Vision - Module Power, Ground, Serial Data, and Controls (UV2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
