Installation Procedure
- Install the power steering control module torque sensor wiring harness.
- NOTE:
Some components not shown for graphic clarity.
Install the power steering assist motor wire clip (3).
- Install the power steering control module torque sensor wiring harness clip (2) to the electric belt drive rack and pinion steering gear housing.
- Connect the power steering control module torque sensor wiring harness (1) to the power steering assist motor.
- NOTE:
Some components not shown for graphic clarity.
Connect the power steering control module torque sensor wiring harness (1) to the electric belt drive rack and pinion steering gear.
- NOTE:
The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

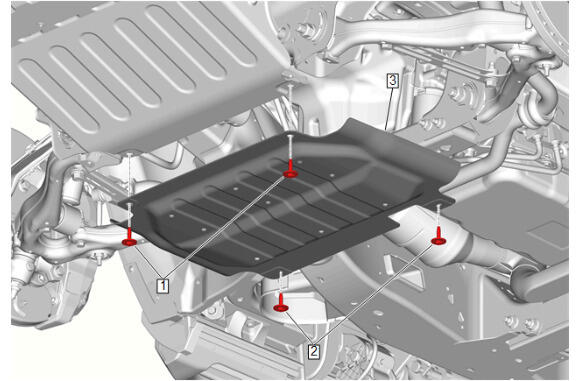

Underbody Skid Shield (3) - Install
- Underbody Splash Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications

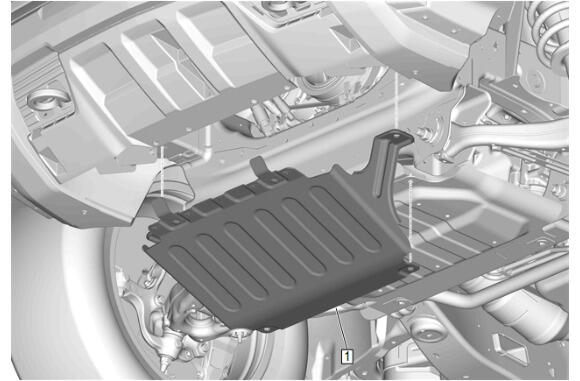

Underbody Splash Shield (1) - Install

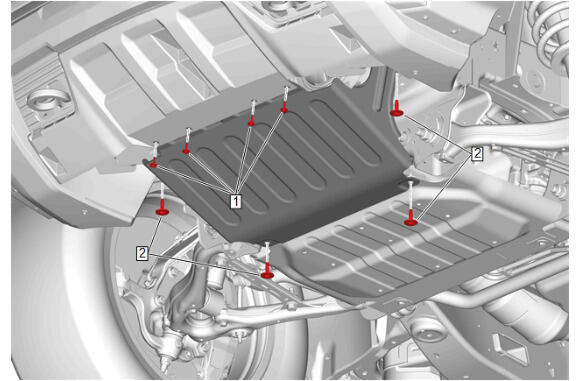

Underbody Skid Shield Bolt (2) - Install and tighten [4x] - Fastener Specifications
- Front Bumper Fascia Skid Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Remove the supports and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Clear DTCs.
CAUTION:
Refer to Fastener Caution .
