Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the assist step control module (2) to the assist step control module bracket (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Assist Step Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

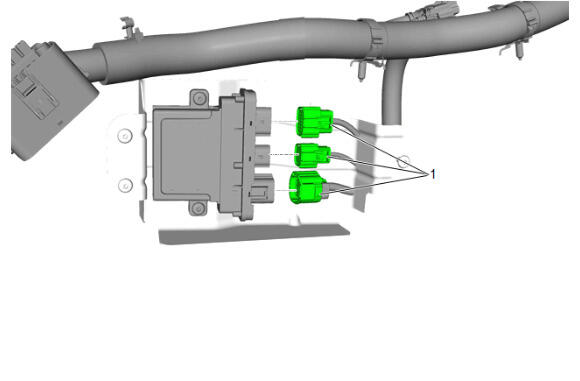

Electrical Connector (1) - Connect [3x]
Courtesy of GENERAL MOTORS COMPANY

Install the assist step control module bracket (1), to the slots in the frame, and slide downward.
Courtesy of GENERAL MOTORS COMPANY

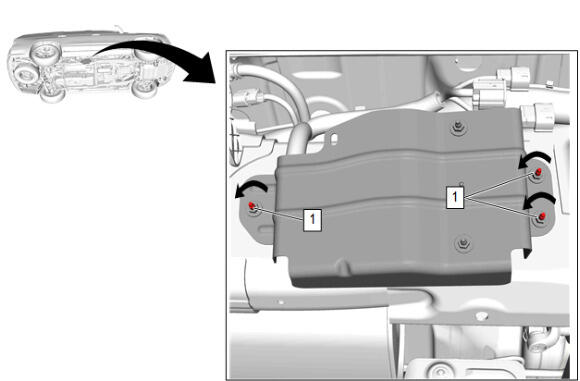

Using a inverted Torx bit, tighten the 3 assist step control module bracket bolts (1) by turning in the counter clockwise direction. Fastener Specifications
Lower the vehicle.
Perform the assist step learn procedure. Assist Step Learn
