Radiator Support Components

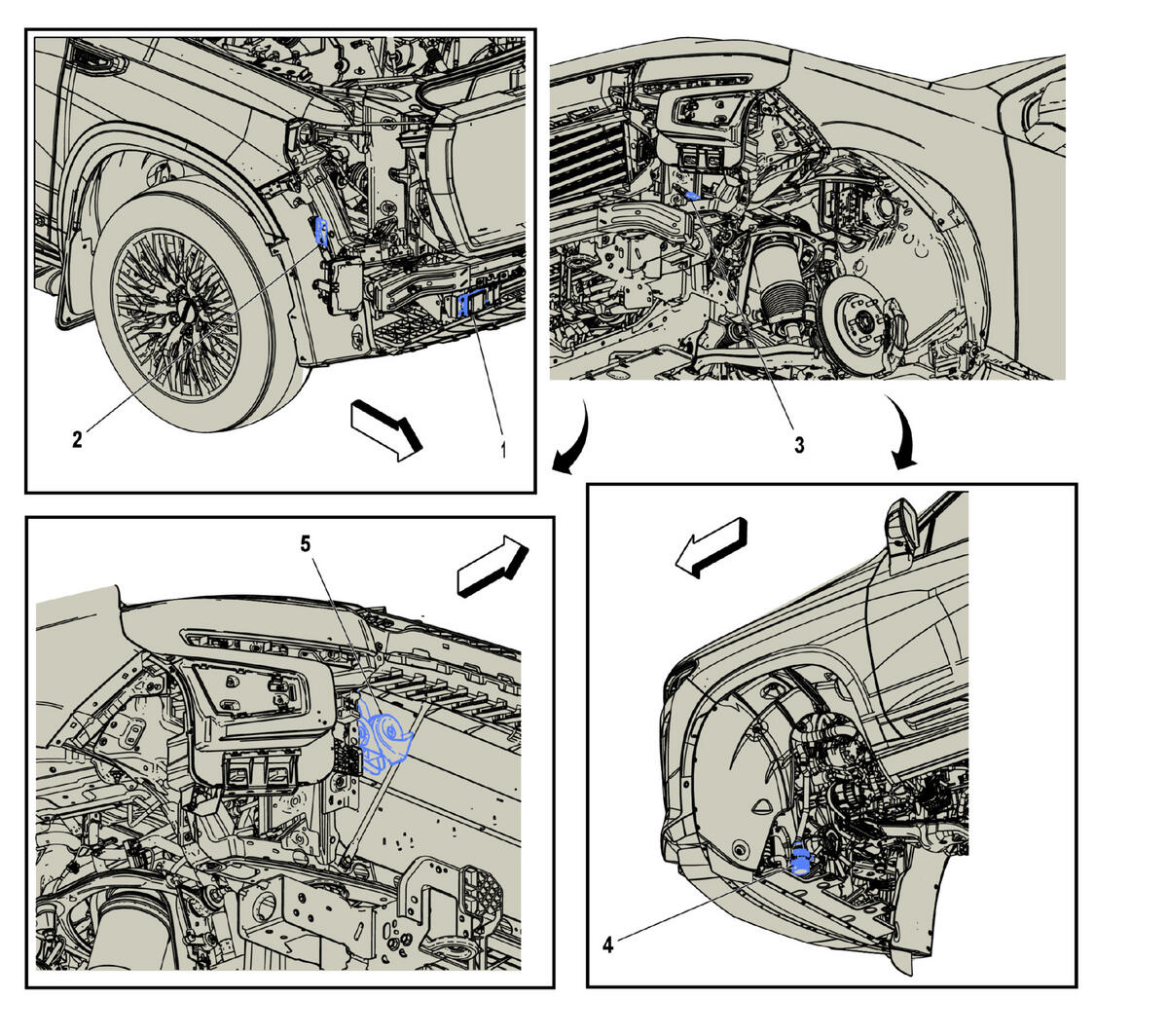

GM5548907Courtesy of GENERAL MOTORS COMPANY
Radiator Support Components

Component Name Callout
B233B Forward Range Radar Sensor - Long Range (UGN) B233B Forward Range Radar Sensor - Long Range (UGN/UVZ) 1
B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right 2
B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left 3
M10 Charge Air Cooler Coolant Pump (LM2) M10 Charge Air Cooler Coolant Pump (LM2) 4
P13 Horn P13 Horn 5
