T1 DC/AC Converter Control Module X2 (KI4)

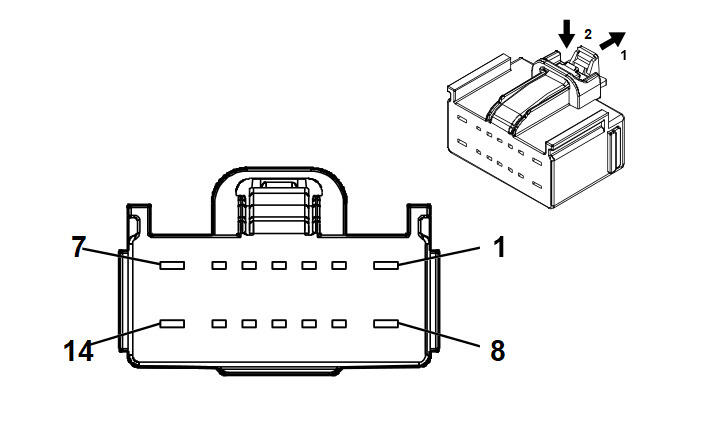

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575850 | J-35616-14 (GN) | J-38125-557 |
| II | 84962855 | J-35616-4A (PU) | J-38125-11A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | BK | 5683 | 120V AC Phase A | II | - |
| 2 | 0.5 | VT/RD | 4049 | AC Power Outlet Sensor High Reference | I | - |
| 3 | 0.5 | VT/WH | 1139 | Run/Crank Ignition 1 Voltage | I | - |
| 4 | 0.5 | WH/GN | 4628 | DC/AC Inverter Relay Control | I | - |
| 5 | 0.75 | BU/BN | 6807 | DC/AC Inverter Control | I | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 | BK/WH | 2264 | 120V AC Phase A 2 | II | - |
| 8 | 0.75 | RD | 5684 | 120V AC Phase B | II | - |
| 9 | 0.5 | Bare | 2519 | 120V AC Outlet Low Reference | I | - |
| 10 | 0.35 0.5 |
GN/BU GN/BU |
6133 6133 |
Body Control Module LIN Bus 2 Body Control Module LIN Bus 2 |
I I |
KI4 KI5 |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.75 | GN/BN | 2266 | DC/AC Inverter Control 2 | I | - |
| 13 | 0.5 | Bare | 2521 | 120V AC Outlet 2 Low Reference | I | - |
| 14 | 0.5 | RD/WH | 2265 | 120V AC Phase B 2 | II | - |
