Door Lock Switch Replacement

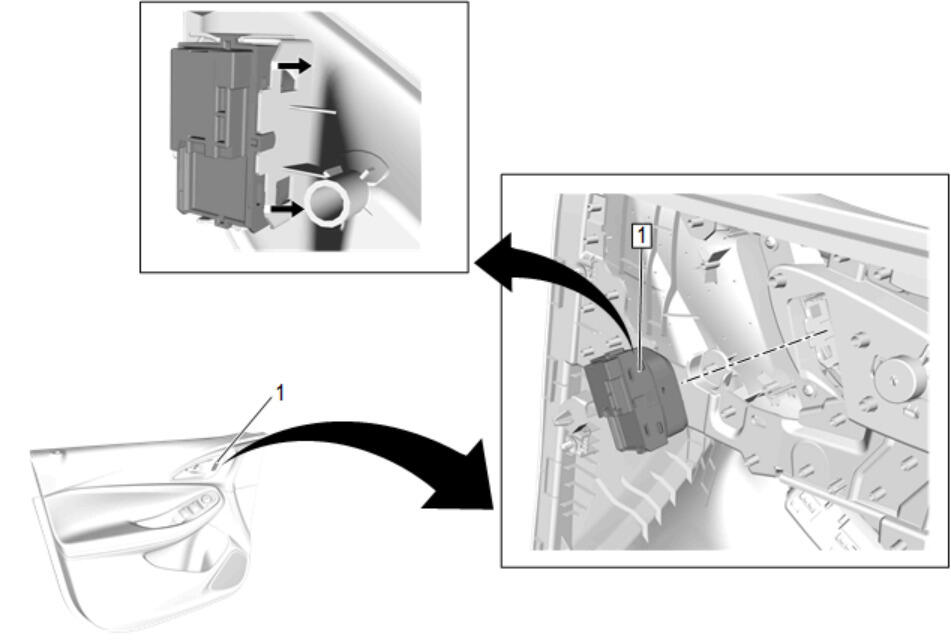

GM5207942Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Door Lock Switch
Procedure
Unlock the retaining tabs.
