Removal Procedure

  1. GM5220200Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Replacement

  2. GM5390689Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor Shield (2) - Remove - Rear Closure Hands Free Sensor Shield Replacement

  3. GM5390761Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove [2x]

  4. Wiring Harness (2) - Reposition
  5. GM5390762Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Screw (1) - Remove [2x]

  6. Disconnect the electrical connector.
  7. Rear Closure Hands Free Module (2) - Remove

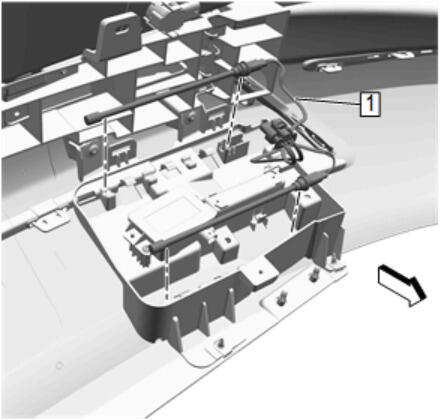

  8. GM5390765Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor (1) - Remove

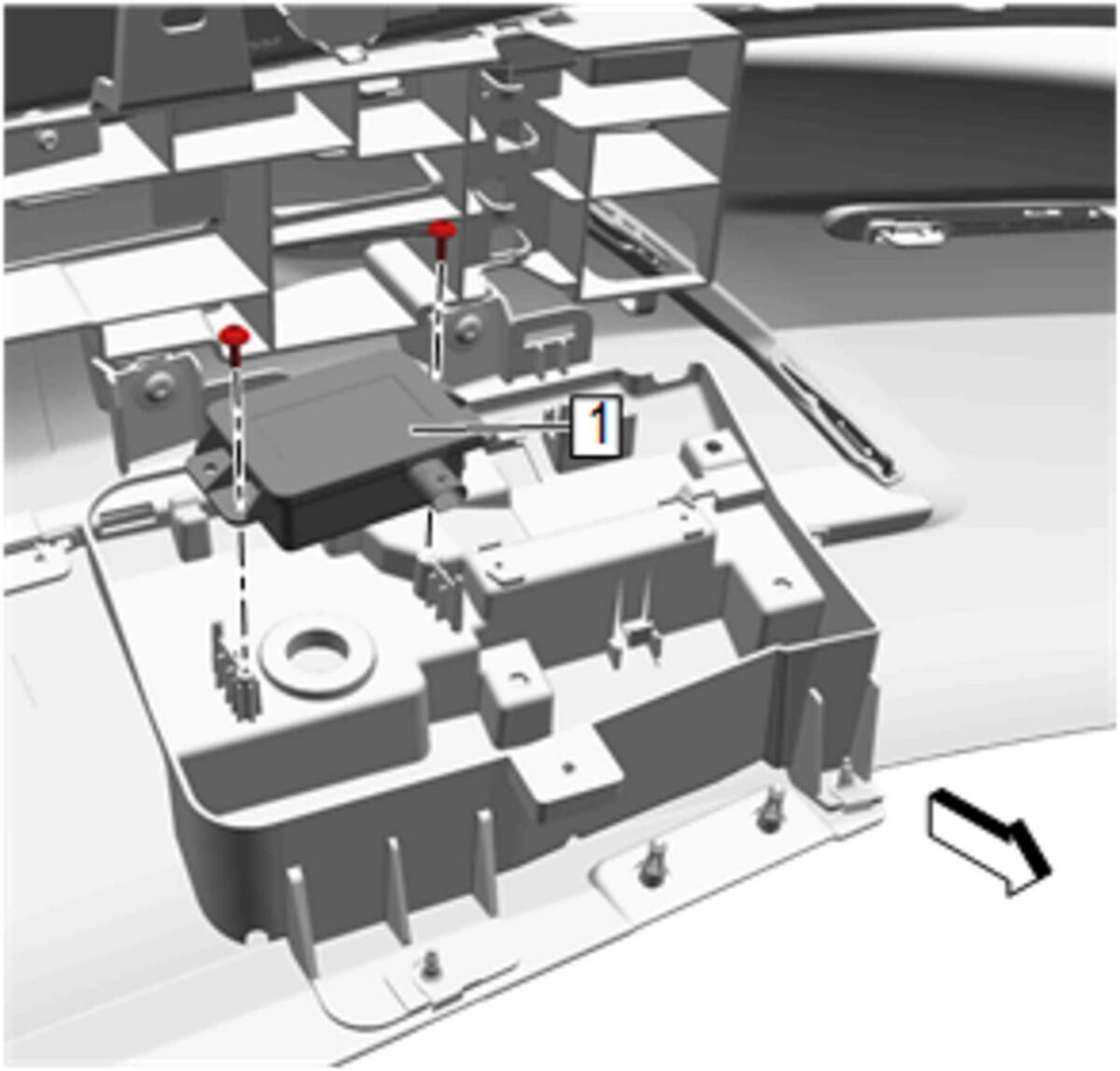

  9. GM5390767Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Lamp (1) - Remove - Rear Closure Hands Free Lamp Replacement

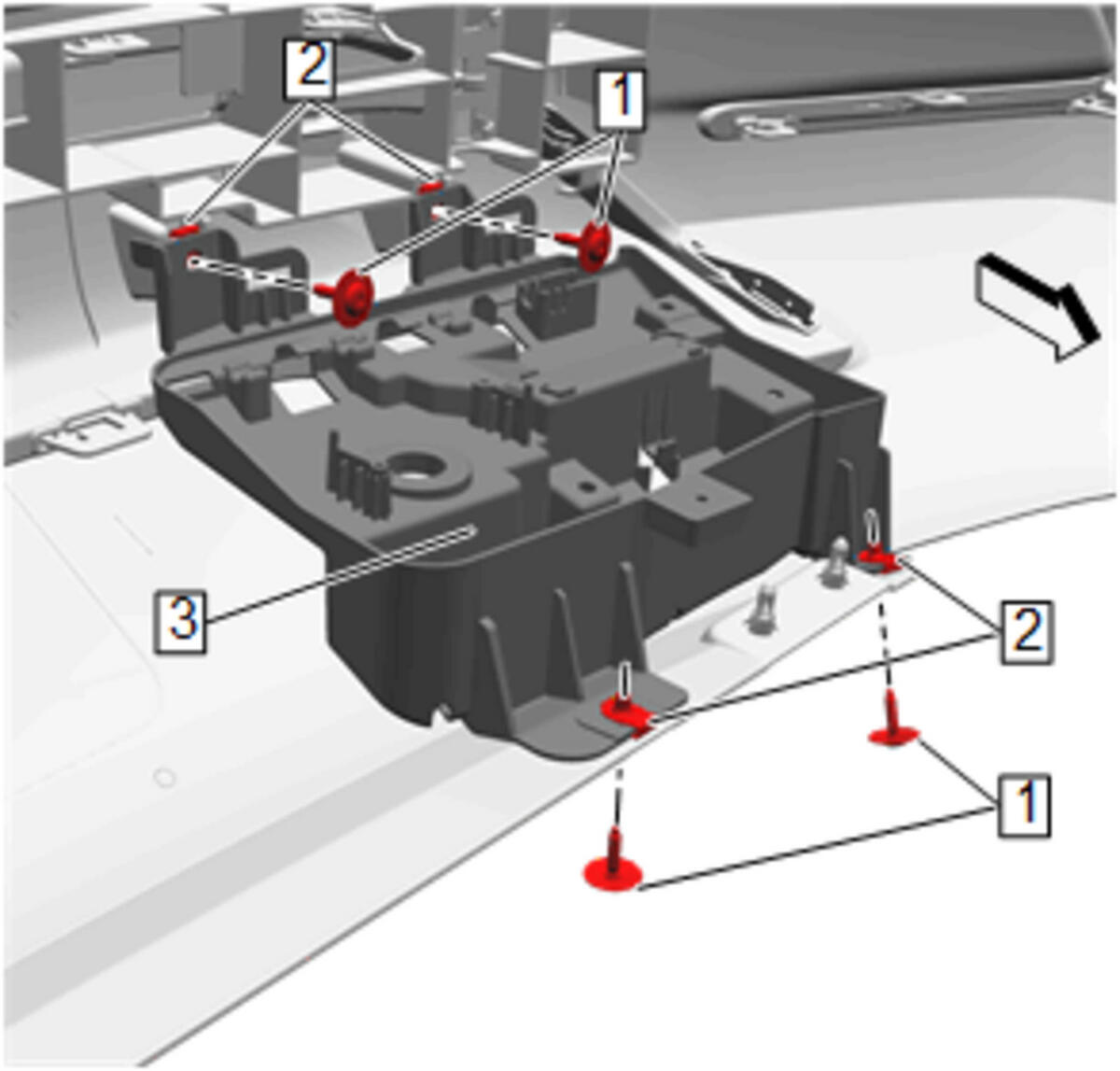

  10. GM5390769Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Bracket Screw (1) - Remove [4x]

  11. Rear Closure Hands Free Module Bracket Spring Nut (2) - Remove [4x]
  12. Rear Closure Hands Free Module Bracket (3) - Remove
